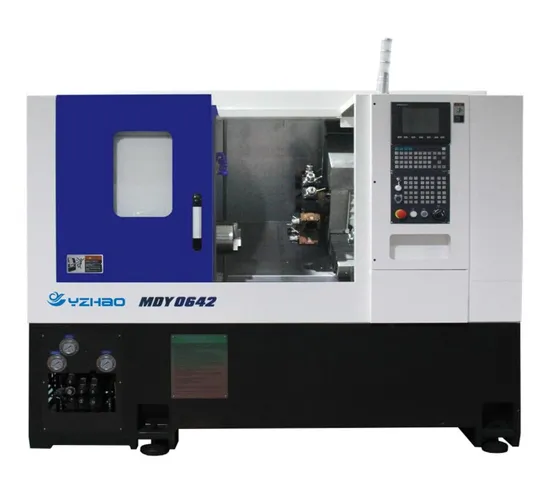

High Precision Equipment RoHS Certification Automatic Mdy0642 Machine Metal Lathe

Product Description

Detailed Photos


Product Parameters

Parameter

Unit

MDY0642

Max. Swing Diameter Over Bed

mm

650

Max. Machining Diameter

mm

320

Max. Machining Length

mm

500

X Axis Max. Movement

mm

185

Z Axis Max. Movement

mm

556

Y Axis movement

mm

+/-35

Live tooling power/torque

Kw/N.m

2.4/ 11.5

Tailstock Max. Movement

mm

470

Tailstock Sleeve Max. Movement

mm

100

Spindle Nose

NA

A2-6

Spindle Bore

mm

66

Max. Bar Capacity(inner)

mm

52

Spindle Power

kw

15KW

Spindle Speed Range

rpm

0-4500

Spindle Torque

N.m

91/260

Hydraulic Chuck Size

inch

6

Servo Turret Type

mm

Offset

Servo Turret Stations

pc

15

Tool Shank Size

mm

20

Boring Toolholder ID

mm

Φ25

Tail stock center type

Type

MT5

X/Z Axis Rapid Traverse

m/min

20/20

X/Z Axis Repeatability Accuracy

mm

0.003/0.005

Hydraulic Tank Capacity

L

40L

Hydraulic Station Motor Power

kw

1.5

Oil Lubrication Capacity

L

2

Full Machine Power

kw

26

Machine Overall Dimension(LxWxH)

mm

2262* 1668*2047

Total Machine Weight

mm

≈3520

Warranty

Month

12

No.

Item

Brand/Model

From

Qty

1

Machine body

Horizontal slant bed HT300 casted iron

China

1

2

CNC system

Syntec 22TB

Taiwan

1

3

Spindle

Buit-in Electro-spindle

China

1

4

X Screw

PMI 3210 C3 grade ball screw

Taiwan

1

5

X axis motor

Fanuc Serve motor 3.9kw, 18.6N.m torque

Japan

1

6

Z Screw

PMI 4012 C3 grade ball screw

Taiwan

1

7

Z axis motor

Syntec Serve motor

Taiwan

1

8

X/Z axis Guide way

PMI 35/45 P grade roller guide way

Taiwan

4

9

Chuck

Hydraulic hollow chuck with 3 jaws

Taiwan

1

10

Turret

15 Stations power turret

China

1

11

Tailstock

Servo tailstock.

China

1

12

Hydraulic System

Seven Ocean 40L capacity, 1.5kw

Taiwan

1

13

Lubrication System

Ishan 2L capacity

Taiwan

1

14

Cooling system

Luikar 15m lifting

Taiwan

1

15

Water tank

120L water tank

China

1

16

Low pressure electrics

Schneider

France

1

17

Lights

Working light and warning light

China

2

18

Inner fence

Stainless steel full closed inner fence

China

1

19

Machine cover

Full closed machine cover

China

1

20

Tool box

Machine tools kit in box

China

1

Company Profile
NINGBO YZHAO INTELLIGENT MACHINE Co., Ltd. is a national high-tech enterprise, dedicating to the Research & development and manufacturing of precise CNc lathe, machine center, digital & automatic production line, With the headquarter in Fenghua, Ningbo, China. Company has its own production base of 20000 square meters, has the capability of making 6000PCS/sets machines per year.Since the foundation in 2008, driven by ongoing scientific & technical innovation, now already have a strong technique team, with European specialist three people, high-medium technician more than thirty. For better serving the esteem customers, YZHAO fully take the advantages of advanced concept and technology from EU like Italy and GER., connecting with the domestic actual manufacturing situation, for years focus on the innovation, R&D and production on the CNc turning process & smart manufacturer, forming a dozen of high performance CNC lathe machines, like P series CNC lathe with flat bed in gang tools, X series CNC lathe with slant bed in gang tools, M series turret machines, S series turning & milling centers with double spindles, and forming a dozen of high performance machine centers, T series tapping centers, V series vertical machine centers, H series horizontal machine centers, VF series 5 axis machine centers, and especially for the customized automation having the obvious features of stability & compatibility, B series automation for shaft parts, H series gantry loader automation, G series six arm robots automation, among which, the in house built-in synchronous electric spindle (from Italy technology) plays a prominent part in the precise positioning of turning & milling center application, which with a number of independent invention patents, always in the leading position of CNCturning & smart manufacturing field, going through years of rich experiences in practical application, bring to the customers more and more feasible custom-made technique solutions and turnkey projects, gaining a very good reputation in the domestic and overseas market. With strong R&D team and strength, based on mutual benefit & win-win and customized service principle, bold investment in innovation, ongoing accumulation of experiences , YZHAO is committed to bring the biggest economic benefits to more and more enterprises.

FAQ

1. What is the payment Terms ?
A : T/T or L/C ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. what is your company mainly produces ?
A : Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories, wier cutting machine,cnc machine center
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
5. What is the packaging of the machine?
A: The standard packaging of the machine is wooden pallet with plastic film.
