Belt Stripper Steel Cord Stripping Machine for Conveyor Belt Splicing

Belt Stripper Steel Cord Stripping Machine for Conveyor Belt Splicing

US$2,500.00
1 Piece
US$2,300.00
2-4 Pieces
US$2,000.00
5+ Pieces

Basic Info.

Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Transport Package
Wooden Case
Specification
Please check details
Trademark
HUAO
Origin
Shanxi Province, China
HS Code
8479899990

Product Description

For stripping steel cables when preparing belt splices.Highly efficient and labour saving for conveyor belt heating splice.The cutting device designed for cable pitches of 10-25mm and for diameter of 4.9-13.2mm. Consists of pulling unit, slide unit and cutting device ( blades).
STRIP MACHINE WEIGHT: 13KG
TRACTION BELT THICKNESS STEEL CORD DIAMETER CABLE PITCHES BELT STRENGTH PULLING SPEED
≥6KN ≤43mm 4.9-13.2mm 10-25mm ST1600--ST5400 6--20m/min

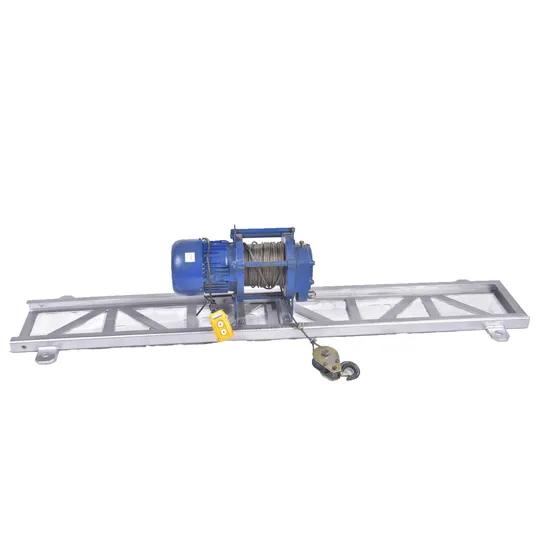

PULLING UNIT WEIGHT: 55KG
MODEL RATED TRACTION PULLING SPEED POWER POWER SOURCE SIZE( L X W X H)
BD-18 400kgf 12.5m/min 1.1kw 380V/50HZ,3ph 480x300x410mm
SLIDE UNIT WEIGHT: 31KG
WIDTH HEIGHT LENGTH WEIGHT
470mm 410mm 2500mm 31kg

NOTE: PULLING UNIT VOLTAGE CAN BE CUSTOMIZED!
