Plastic Jdf45 Soft PVC Garden Fiber Braided Reinforced Pipe Flexible Water Hose/Corrugated Pipe/Tube/Conduit Cable/Corrugated Extrusion Making Machine Price
| US$20,000.00-40,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
MT20-63
Screw No.
Single-screw
Automation
Automatic
Computerized
Computerized
Certification
CE
Customized
Non-Customized
Condition
New
After-sales Service
1year
Motor
Weg
Contactor
Schneider
Inverter
ABB
Material
SPVC
SSR
Celduc
Gearbox
Guomao
Screw/Barrel
Bimetallic
Heating
Ceramic Heating
Water Pump
Guangyi
Ce
Yes
Transport Package
Wood
Specification
sgs
Trademark
middle tech
Origin
Zhangjiagang City
HS Code
84772090
Production Capacity
80kg/Hr
Packaging & Delivery
Package Size
600.00cm * 200.00cm * 200.00cm
Package Gross Weight
3000.000kg
Product Description

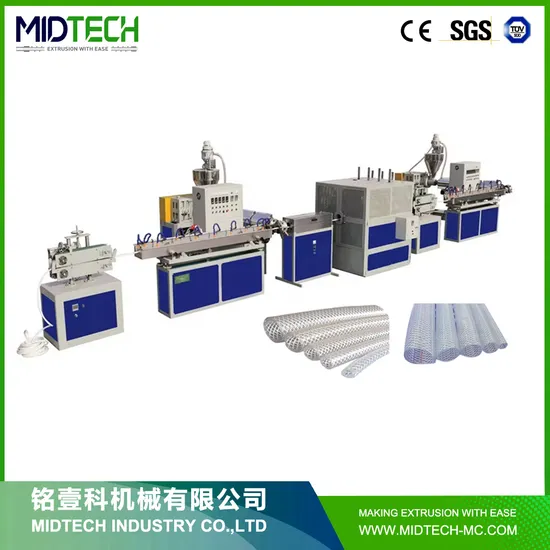

Product DescriptionSoft PVC Fiber Reinforced Pipe Production Line
Detailed Photos
Introduction:
PVC Fiber Reinforced Soft Pipe Production Line, which is mainly used to convey pressure gas or corrosive gas and liquid. Suitable for conveying the pressure or corrosive gas, liquid. Widely used in the machinery, coal mineral, petroleum. Chemical industry, agriculture irrigation, construction, civil (solar water heater, gas cylinder)etc.
Equipment List:
1. Extruder:
2. Mould
3. Wire Winding machine
4. Water Cooling Tank
5. Oven
6. Haul-off Machine
7. Cutting Machine
8. Pipe Winding Machine
High speed kneading machine (mixing materials)---mould---extruder 1(innermost layer PVC pipe)------cooling tank 1---hauling machine 1 ---winding machine (fiber line that is the second)---dryer---extruder 2(the most outer PVC pipe )----cooling tank 2---hauling machine 2---coiling pipe bender ----package.
Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
If you want more detail about this pipe extrusion line, please contact us Product Parameters
| Model | SJ45/30 | SJ65/30 |
| PVC Hose Diameter range(mm) | 6-16mm | 12-50mm |
| Capacity(kg/h) | 20-40 | 40-80 |
| Installed power(kw) | 35 | 50 |
| Operator | 1-2 persons per shift | |
| Material of Hose | PVC Granules + Polyester thread | |
PVC reinforced pipe Configuration
| Item | Description | Data |
| 1 | Single Screw Extruder | 2 sets |
| Screw and Barrel Material | 38CrMoAlA | |
| Treatment of Screw and Barrel Surface | Nitriding | |
| Heating Mode of Screw Barrel | Cast-aluminium Heating Circles | |
| Cooling Mode of Barrel | Air Blower | |
| Main Motor Power Speed Adjusting | ABB Frequency Inverter | |
| Gearbox Reducer | Hardening Gear Surface, Low Noise | |
| 2 | Die Head | 1 set or According to Customer's Need |
| 3 | Water Cooling Tanks | 2 sets |
| Tank Material | Excellent Stainless Steel | |
| Tank Length | 2000-3000mm | |
| Tank Thickness | 3mm | |
| Water Pump | 2 sets | |
| 4 | Fiber Winding Machine | 1 set |
| Motor | 2.2KW | |
| Speed Adjusting Mode | ABB Inverter | |
| 5 | Hauling off Machine | 2 sets |
| Motor Power | 1.5kw*2 | |
| No.of Belt | 2 *2 sets | |
| Speed Control | A Inverter | |
| 6 | Twin Position Coiler | 1 set |
| 7 | Main Electrical Components | SIEMENS ,Omron, ABB, Schneider etc. |
