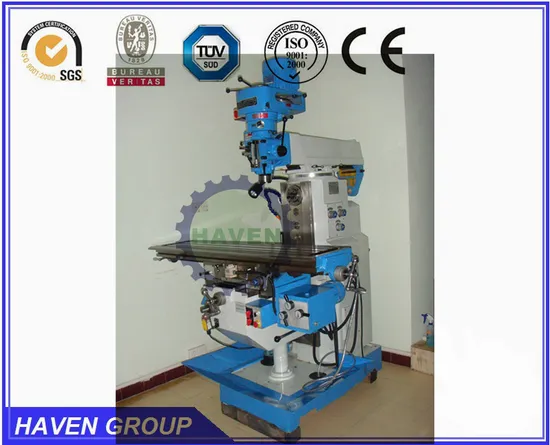

X6323A HAVEN Brand High quanlity Universal turret milling machine
| US$3,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6323A
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
worktable travel
620X350X500
machine type
milling machine
Transport Package
Veneer Case
Specification
CE Standard
Trademark
HAVEN
Origin
China
HS Code
8455
Production Capacity
100PCS/Month
Product Description
X6323A HAVEN Brand High Quanlity Universal Turret Milling MachineMain features:
1) Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting
Our Target:BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige
| Item | Unit | X6323A | X6323B | X6325 | X6325A | X6325B | X6325C | X6325D | X6330 | X6330A | X6333 | X6333A | ||
| Table size | Mm | 230x1067;230x1246) | 254x1270;254x1370; | 305x1370;305x1500; | 330x1370;330x1500; | |||||||||
| Long travel | Mm | 650;840 | 850;950; | 920;1000; | 840;1000 | |||||||||
| Cross travel | Mm | 305 | 420 | 400 | 400 | 420 | 380 | 368 | ||||||
| Vertical travel | Mm | 400 | 420 | 430 | 530 | |||||||||
| T-slot No.And size | 3x16 | |||||||||||||
| Ram travel | Mm | 312 | 470 | 500mm | ||||||||||
| Distance from spindle nose to table surface | Mm | 0~415 | 0~405 | 0~350 | 0~450 | |||||||||
| Distance from spindle center to column | Mm | 170~482 | 140~609 | 108~760 | ||||||||||
| Spindle hole taper | Standard):R8;Optional:ISO30 / ISO40 | Standard) ISO40 | ||||||||||||
| Spindle travel | Mm | 127mm | ||||||||||||
| Spindle speed | Rpm | Standard:Shift grade | 65~4500 | Standard:Shift grade | 65~4500 | |||||||||
| Optional:Variable) | 65~4200 | Optional:Variable | 60~3750 | |||||||||||
| Auto.Quill feed | (three steps) :0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution | |||||||||||||
| Spindle motor | HP | 3 | 5 | |||||||||||
| Head swivel | ° | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | ||
| Head tilting | ° | 45 | 45 | 45 | 45 | 45 | FIX | 45 | 45 | FIX | 45 | FIX | ||
| Dimension of package | One unit per case | Mm | 1400x1476x2030 | 1516x1550x2080 | 1566x1650x2080 | 1800x2016x2180 | ||||||||
| Two units per case | Mm | 1450x1570x2080 | 1650x1750x2170 | 1720x1800x2175 | 1800x2280x2180 | |||||||||
| Three unitsr per case | Mm | 1450x2180x2080 | 1650x2285x2235 | |||||||||||
| Machine weight | Kg | 1100 | 1160 | 1550 | 1380 | 1420g | 1590 | 1590 | 1700 | 1750 | 2300 | 2350 | ||
