Recycled Material 100t/Day Testliner Making Packing Recycling Machines Board Paper Corrugated Machine

Product Description

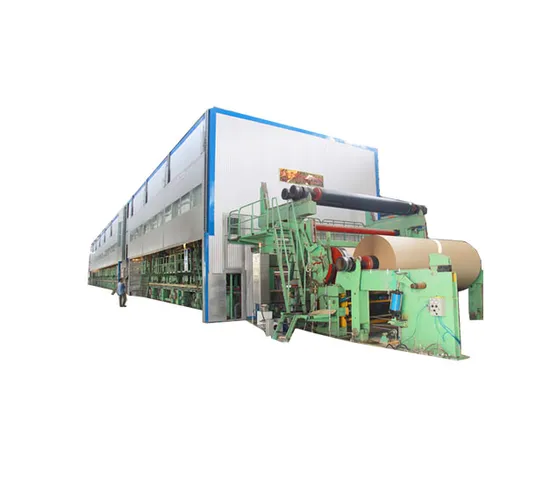

4400mm Recycling Machines Paper Machinery for Carton Mill

Brief Introduction We mainly supply the paper machine full production line including1. Pulp preparation system2. Pulp approaching system3. Paper making machine4. Related auxiliary like size press, coating machine, slitter and rewinder etc.The width range: 1600, 1760, 1880, 2400, 2850, 3200, 4400 up to 6000mmWe supply full plant design with the machine and good service after sales.
Technical requirement
1. Raw material:OCC and pulp
2. Output paper: liner paper,fluting paper, Kraft paper, corrugated paper
3. Output paper weight: 120-180g/m2
4. Net paper width: 4400mm
5. Wire width: 4800mm
6. Capacity: 100T/D
7. Working speed: 90-130m/min
8. Designing speed: 150m/min
9. Rail gauge: 5450mm
10. Drive way: A/C inverter speed control, sectional drive.
1. Wire part
Double wire design,bottom wire table length 16m,top wire table length 8m,frame welded by #45 steel plate,covered by stainless steel. With 2 sets closed flow box,made by stainless steel,with double evener rolls.
2. Press part
2 sets of press rolls in large diameter.
4 pcs Blind press roll 1350mm×4800mm×5450mm,rubber shore hardness 96ºC±2, with pneumatic pressure device
3. Dryer part
16 pcs 1500mm×4800mm×5450mm alloy dryer cylinder with 16pcs of blade.
4. Winding part
1set horizontal pneumatic winding machine,winding drum 1100mm×4800mm×5450mm
5.rewinding part:
Frame structure rewinding machine
Raw material
Paper making machine Use Wheat Straw pulp, Rice Straw, Waste Books Paper, Wood Chips, Waste Paper, Bagasse, Wood pulp board, waste paper to produce Kraft paper, test liner paper, corrugated paper, fluting paper, cardboard paper.
Why choose us?
(1) professional engineer team with 30 years experience;
(2) we can supply turn-key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualified product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: if any problem of machine, we will recall it and change a new one for free;
Details of product Description: Kraft and Corrugated Paper Making Machine is a production line that use waste books paper, wood pulp board, waste paper box, old corrugated carton, wheat straw pulp, wood etc. to produce Kraft paper,test liner paper, corrugated paper, fluting paper, cardboard paper. Kraft and corrugated Paper Making Machine Is Mainly Used as The Package Material, High Strength, Brown Color. Full Bleached or The Half Bleached Kraf Paper Pulp Is Light Brown Color , Cream Color, or The White Color. Most Are Jumbo Rolls, Some Are Sheets. The Kraft Paper Is Generally Made Into The Cement Paper Bags, Envolope, and Cables Protective Paper. Good Quality Waste Carton Recycle Corrugated Paper Making Machine.
Company Profile
Since 1989 Qinyang City Haiyang Papermaking Machinery Co., Ltd has been established who is specialist in manufacturing a wide range of Paper Machines for Kraft, Test liner, Fluting paper, Corrugate, Writing & Printing, Newspaper, Duplex Board. We have more than 30 years expertise lies in applying state of the art technology to provide cost effective custom designed solutions to suit their varied requirements. The main series of the products are tissue paper machine; kraft paper/testliner /fluting paper machine;writing paper machine and special paper machine,etc. This company provides customers high efficiency and practical paper making production line with low carbon environmental protection thought. At present, our products have been sold to more than twenty provinces, cities and autonomous regions in domestic region and exported to Vietnam,Egypt, Bangladesh,Malaysia,Pakistan,Iran and other countries.
Certificate
Packing & Delivery
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tight plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
Our service
Pre-sale Service
--24 hours phone, email, trade manager online services;
--We will supply the detailed project report, detailed general drawing, detailed flow process design, detailed layout factory drawing for you until meet your requirement;
--we welcome you to come to our paper making machine factory and paper mill factory to have a look and check;
--We will tell you all the necessary cost when set up a paper mill factory;
--We will answer you all the questions within 24 hours;
--We will send you various quality paper samples made by our paper machine for free;
--We can supply turn key-project service.
On-purchase Service
--We will accompany you to check all the equipment made by us, and help you to make the plan of installation;
--We will supply paper machine assembly drawing, the foundation and foundation load diagram, transmission diagram, formal installation drawing, use and installation instructions and a full set of technical data after signing the contract.
After-sales Service
--We will delivery the machine as soon as possible according to your requirement, within 50 days;
--We will send rich practiced experience engineers to you to install and test the machine and train your worker for free;
--We will give you one year guarantee time after the machine can run well;
--After one year, we can guide and help you to maintain the machines;
--Every 2 years, we can help to overhaul the complete machines for free;
--We will send you spare part in lower price.
FAQ
1. What kind of paper machine your factory produce?
Our factory mainly produce flowing machine:
A. Kraft paper machine which can produce carton box paper, corrugated paper, craft paper, testliner paper, carton board paper etc.
B. Culture paper machine which can produce white paper jumbo roll, include A4, A3 paper, copy paper, printing paper, newspaper, offset paper etc.
C. Toilet Paper Machine which can produce toilet paper, tissue paper jumbo roll
D. Paper processing machine. the jumbo roll paper can be processed all kinds of paper, such as , A4, A3paper, handkerchief paper, towel paper and kitchen using paper
2. Can you make paper mill design for us?
Yes, we have a technician team of 116 engineers and 12 experts with more than 20years experience.
3. How about your machine quality, we are worry about the quality?
FRD is a mature brand in china, more than 30 years manufacuturing experience of different kinds of paper machines. We strictly manufacture and manage according to IOS9001:2008 System, and can match all the CE standard or more strict standard. our paper machine is running well in more than 20 countries. we are gold supplier on ****** already 5 years.
4. What should I have to know if I want to get the quotation?
a. What kind of raw material you will use(main important)
b. The capacity you want produce per day(main important)
c. The paper weight you require.
d. The paper width you require.
5. Your machine price is high, is there any discount?
We always provide high quality paper machines, we are paying more attention on oversea market, because of communication time after sales, and also it need very long time to send new parts. our paper machines have enough quality standard to make sure the machine can work more than the real warranty period. our marketing style is quality=price and price=quality, the price will be acceptable for our clients and durable for our machines. anyhow, when we will negotiate the price with each other during our meeting in factory, and get a good satisfaction.
6. Could your engineer can teach and train our workers and stay in our factory for long time?
Yes, we have 116 technical installation engineer team, they can train and teach your worker to operate paper machine, but you should pay them salary.
This is Summer, manufacturer of paper machine with turn key service.We mainly produce all kinds of paper making machine. Please send inquiry to get more details.
