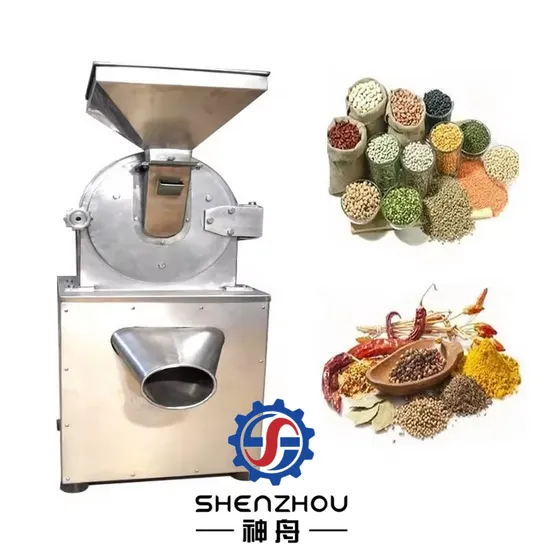

Stainless Steel Cocoa Grinder Machine Cocoa Powder Grinding Mill Spice Grinder Corn Grinding Machine Industrial Flour Mill

Product Description

Product Description
Stainless Steel Cocoa Grinder Machine Cocoa Powder Grinding Mill Spice Grinder Corn Grinding Machine Industrial Flour Mill
This machine is widely used in the crushing operation of a variety of small blocks, strips and granular materials with medium and low hardness in the pharmaceutical, food, chemical and other industries. The pulverization fineness can be adjusted freely between 12-120 meshes according to the screen and production requirements. This machine utilizes the high-speed relative movement between the movable toothed disk and the fixed toothed disk, so that the crushed materials are crushed by the combined effects of toothed rod impact, friction and material collision. This machine has simple structure, scientific and reasonable design, sturdiness, stable operation and good crushing effect. The crushed materials can be directly discharged from the grinding cavity of the main machine. The particle size can be obtained by replacing mesh screens with different apertures. The inner wall of the casing is all machined to reach the surface. The smoothness has changed the phenomenon of rough inner wall and powder accumulation of the previous models, so that the production of medicine, food, chemical industry, etc., is well received and trusted by users in the pharmaceutical, food, chemical industry and other industries. Although the universal crusher is "omnipotent", it is not "invincible and invincible". It is mainly used for crushing materials with low hardness in the pharmaceutical, food, chemical and other industries. It can also be used for crushing medium and low hardness. The effect of non-metallic minerals is better.Made of 304 stainless steel Food grade design Simple structure and easy to operate Customized Changing the fineness through the screen Universal grinder single machine
Features1. Uniform fineness: can be sieved smoothly;
2. High output: customers need non-standard equipment that can be tailored to meet the requirements of high-yield customers;
3. Less restricted by the characteristics of the material: such as suitable for crushing various grains, sugar, medicinal materials, etc.;
4. Strong applicability: small test equipment can be configured with 220V voltage,
5. Crushing method: tooth disc, hammer type;
6. Material: all stainless steel, contact material stainless steel;
7. Operating system: common buttons, PLC touch screen;
8. Dust removal method: simple dust removal, pulse dust removal;
9. This machine is equipped with a water circulation jacket to reduce the temperature of the machine cavity.Technical Paramers

Model	10B	20B	30B	40B	50B	60B	80B	100B
Capacity(kg/h)	10-50	60-150	100-300	160-800	200-1000	300-1500	400-2000	500-3000
Shaft speed(r/min)	6000	4500	3800	3400	3200	2800	2000	1500
Fineness size (mesh)	2-120	2-120	2-120	2-120	2-120	2-120	2-120	2-120
Motor power(kW)	3	4	5.5	7.5	11	15	22	30
Weight(kg)	85	180	260	360	450	550	850	1200
Dimension(mm)	550*400*850	550*600*1250	600*700*1450	750*800*1550	800*850*1600	1000*900*1680	1100*950*1960	1350*1000*2100

Specification
working principle: This machine utilizes the high-speed relative movement between the movable toothed disk and the fixed toothed disk, so that the crushed objects can be crushed by the combined effects of tooth impact, friction and material impact. This machine is simple in structure, sturdy, stable in operation, and has good crushing effect. The crushed material can be directly discharged from the mill cavity of the main machine. The particle size can be obtained by changing mesh screens with different apertures. In addition, the machine is all stainless steel. The inner wall of the casing is all machined to achieve a smooth surface, which has changed the rough and dusty phenomenon of the inner wall of the previous model, and made the production of medicine, food, chemical industry, etc.
DetailsHammerPinAir coolingTurboScreen meshSquare feed hopper design
Operation and precautions:
1. Before use, first check whether all fasteners of the machine are tightened and whether the belt is tensioned.
2. The rotation direction of the spindle must be in accordance with the direction of the arrow shown on the protective cover, otherwise it will damage the machine and may cause personal injury.
3. Check whether the electrical appliances are complete.
4. Check whether there are any hard objects such as metal in the crushing room of the machine, otherwise the cutters will be damaged and the operation of the machine will be affected.
5. The purity of the material must be checked before crushing, no metal hard debris is allowed to be mixed in, so as to avoid damage to the tool or cause burning and other accidents.
6. The oil cup on the machine should be filled with lubricating oil frequently to ensure the normal operation of the machine.
7. Stop feeding before shutting down. If you do not continue to use it, remove the residue in the machine.
8. Regularly check whether the cutter and the screen are damaged. If damaged, it should be replaced immediately.
9. The machine body will vibrate slightly when in use. Be sure to tighten the machine cover connection handle to avoid accidents.
Application scope
