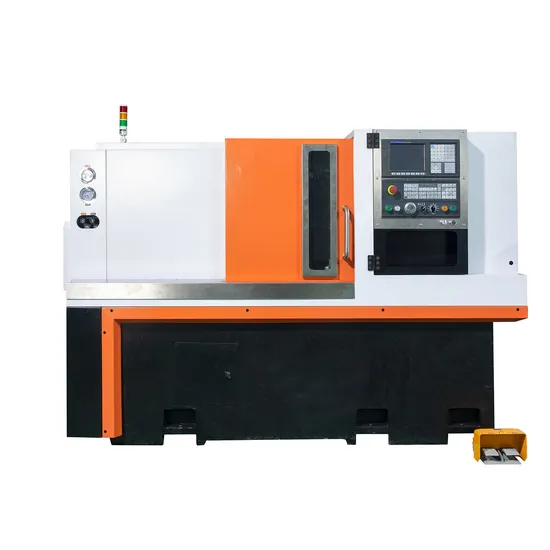

La3900-700mm CNC Lathe Machine Milling and Drilling Machine Tools

Product Description

Product Description
Detailed Photos
Product Parameters
Standard Configuration:
Machine model: LA3900-700
Specifications of bed: integral bed
Control system: Taiwan SYNTEC system
Spindle: Electric Spindle (7.5/11kw)
Clamping configuration: Hydraulic Chuck(LEILIKA)
Tool configuration: Hydraulic tailstock
Feed system:
1. X/Z screw bearing: NSK/LYC
2. X/Z axis ball screw: Taiwan(HIWIN/SHAC)
3. X/Z guide rail: Roller Guide Rail(HIWIN/SHAC)
Spindle bearing: NN3017K/7014 (NSK/LYC)
Other configuration: water pump, automatic lubrication system
Machine bed: integral bed 250 casting

Parameter	SPECIFICATIONS	Units	LA3900-700
Machining Capacity	Maximum turning diameter over bed	mm	Φ450
	Maximum turning diameter over turret	mm	Φ160
	Maximum machining length	mm	700
	Spindle nose		A2-5/A2-6
	Maximum machining bar diameter	mm	A2-5: Φ40 A2-6: Φ46
	Diameter of spindle bore	mm	A2-5: Φ48 A2-6: Φ56
	Bearing Bore	mm	A2-5: Φ85 A2-6: Φ90
	Maximum stroke of X/Z	mm	180/700
Power System	Spindle maximum spindle speed	r/min	A2-5:5000 A2-6:4000
	Spindle Motor	KW	7.5/11(Veichi Grosston)
	X/Z drive motor	KW	1.5/1.5(SYNTEC original)
Tool Post	Height of rectangular tool shank section	mm	25
Precision	Repeat Positioning accuracy	mm	0.01
	Machining accuracy	mm	<0.01
	Spindle beat	mm	<0.01
Other	Hydraulic pump motor	kw	1.5
	Cutting fluid pump motor	kw	0.4
	Power supply power	KVA	11
	Machine weight	kg	2800
	Machine Size	mm	2400x1400x1650

Packaging & Shipping
Customer Receiving Goods
Company Profile
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
7.how to guarantee the precision
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.
