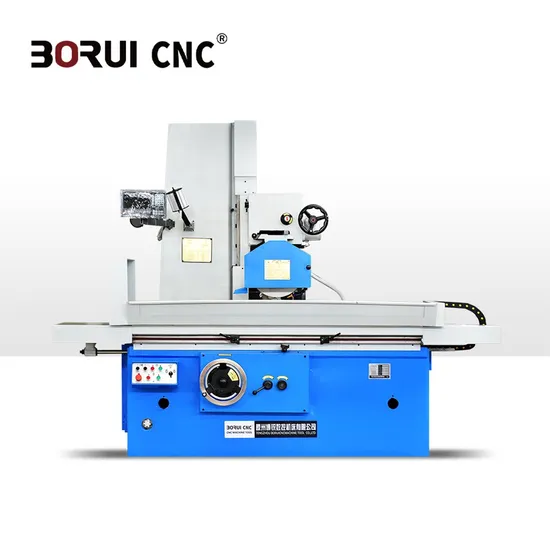

Higher Precision M7140X1000 Grinder Machine Price Automatic Precision Surface Grinder Machine
| US$9,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7140
Type
Surface Grinding Machine
Processing Object
Thread
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
M71 Series Grinding Head Moving Surface Grinding M
Model
M7150
Grinding Wheel Size
400*50*203
Table Size
1000X400, 1600X400, 2000X400
Max. Load Capacity
1100, 1400, 1800
Machine Tool Weight
5600, 6600, 7200
Max. Longitudinal Travel
1350, 1700, 2300
Min. Longitudinal Tra
200
Table T Slot No*Width
3*18
Transport Package
The Machine Willi Be Packed in Plywood Case.
Specification
2700X1750X2100
Trademark
BORUI
Origin
Shan Dong
Production Capacity
500
Product Description
Higher Precision M7140x1000 Grinder machine price automatic precision surface grinder machineProduct Description
STRUCTURAL FEATURES:
The machine tool adopts the t-type layout form, the guide rail on the column is equipped with a drag plate, the middle position of the guide rail is equipped with a vertical feed mechanism, the transmission accuracy is high, the interchangeabil- ity is good, the cross joint is connected in the transmission process, can compensate the center error of the lead screw and the reducer shaft. Closed hydraulic system is adopted for the movement of the worktable. The front and rear feed can be manually fed, the hydraulic feed can be automatically fed, and the lead screw can be fed automatically intermittently driven by a variable frequency motor. Adopt high strength cast iron foundation, grinding head spindle adopt bobbin or high rigidi- ty sleeve structure, the machine overall rigidity is strong, the quality is stable, the operation is stable.
Product main technical specifications:
| Model | | M7140-1000 | M7140-1600 | M7140-2000 |
| Table size (length×width) | mm | 1000×400 | 1600×400 | 2000×400 |
| Max. longitudinal stroke of worktable | mm | 1100 | 1700 | 2100 |
| T-slot of worktable number of slots×width of slot | | 3×18 | 3×18 | 3×18 |
| Table speed (infinite) | m/min | 3--25 | 3--25 | 3--25 |
| Max. distance from the center of the grinding wheel shaft to the worktable | mm | 575 | 575 | 575 |
| Max. stroke of grinding head Horizontal (manual and hydraulic) | mm | 440 | 440 | 440 |
| Max. stroke of grinding head Vertical (manual) | mm | 400 | 400 | 400 |
| Rotating Speed of Grinding Wheel Shaft | rpm | 1440 | 1440 | 1440 |
| Grinding wheel size (outer diameter×width×inner diameter) | mm | 350×40×127 | ||
| Vertical feed handwheel dial value | mm | 0.01 | 0.01 | 0.01 |
| Grinding head feed per turn of handwheel | mm | 1.00 | 1.00 | 1.00 |
| Total motor power | kw | 11 | 12 | 12 |
| power | kw | 7.5 | 7.5 | 7.5 |
| Rotating speed | r/min | 1440 | 1440 | 1440 |
| power | kw | 0.37 | 0.37 | 0.55 |
| Rotating speed | r/min | 1440 | 1440 | 1440 |
| Oil pump motor | kw | 3 | 4 | 4 |
| Rotating speed | r/min | 960 | 960 | 960 |
| Cooling pump motor | kw | 0.125 | 0.125 | 0.125 |
| Rotating speed | r/min | 2800 | 2800 | 2800 |
| flow | L/min | 100 | 100 | 125/50 |
| Work pressure | MPa | 1.5 | 1.5 | 1.5 |
| Parallelism of the machined surface to the base surface | mm | 1000:0.015 | 1000:0.015 | 1000:0.015 |
| Surface roughness | μm | Ra0.63 | Ra0.63 | Ra0.63 |
| net weight/Gross weight | kg | 3800/4200 | 5300/6000 | 6300/7000 |
| Overall dimensions (length×width×height) | mm | 2700×1750×2100 | 4400×1750×2100 | 5400×1750×2100 |
