3-8 Tiers Layer Poultry Farm Machinery / Equipment for Chicken House

Product Description

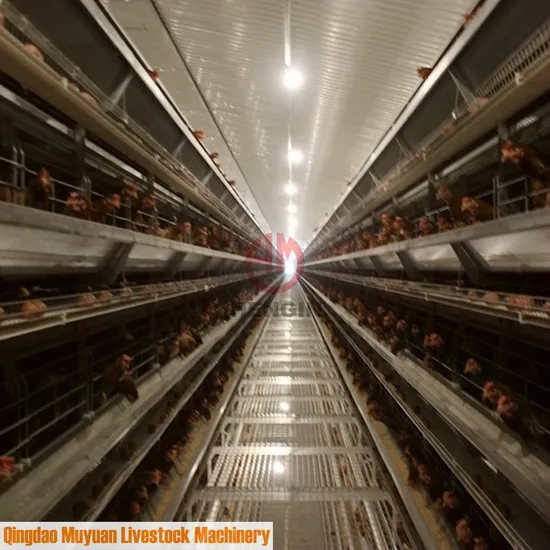

The battery cage have two floors, upper four-tiers and lower four-tiers are connected by bolts. The heavy loading structure is stable and strong. The catwalks are combined with all rows of battery cages.
The catwalk is made of hot-dip galvanized grid. High anti-corrosion treatment, impact resistance and stress ability. good lighting, ventilation, heat dissipation, good anti-skidding performance.


Products Introduction
1. 8 tiers H frame layer cage size

products name	8 tier H type chickken layer cage	Model	9LDC8576
Material	galvanized wire	Tiers	8 Tiers
one unit size	1200mm×1560mm×5940mm (L×W×H)	unit capacity	256/288 birds
one cell size	600mm×600mm×445mm (L×W×H)	cell capacity	8/9 birds per cell
life span	15~20 years	living space/bird	450/400 cm²

2. Advantage:

1).It is the most ideal raising equipment for products of "healthy egg" and "unpolluted egg''.
2).The complete system adopt hot galvanized steel, it is anticorrosive and durable, it can be used for 15-20 years.
3).It can save land area for the high raising density.
4).The centralization of management can save energy and labor cost.
3. Birds Calculation
If the house size 100m*12m (it can put 4 rows )

cage	unit cage/row	height of side wall	total birds qty/house
4 tieirs	75	3.8m	38400/43200
5 tiers	75	4.5m	48000/54000
6 tiers	75	5.0m	57600/64800
8 tiers	75	7.5m	76800/86400

4. Fully Cage System includes:

1). cage and frame
2).fully automatic drinking system
3).fully automatic feeding system
4).fully automatic egg collection system
5).fully automatic manure removing system
6).fully automatic lighting system
7).fully automatic environment and electric controller system
Our Workshop
We have been regarding technical innovation as the effective power of development,and continuously absorbing the advanced technology and experience to improve our capability of research and development and manufacture special products according to different requirement of customers.
We have an advanced R&D center and a complete R&D system,and a R&D team which more than 40 technicians has been organized.At present,we have more than 260 kinds of products and more than 80 patents.
We carry on the tenet of "honest based,value creating"in our daily business to provide cost efficient products and services for customers.
FAQ
Q1:How many types for layer chicken cage?
A1: We have two types, A frame and H frame.
A frame have two models, 3tiers and 4 tiers.
H frame have 7 models , including 3 tiers,4 tiers,5tiers,6tiers,8 tiers ,10 tiers

Q2:How much per set cage?
A2:Different model,price is different.In addition,there are other complement equipments.
Need know how many birds you want to rear,then we can give you a specific price list with house size.

Q3:How long is the warrenty?
A3:1 year.

Q4:Who is in charge of install ?
A4:We will arrange two engineers to your country to guide installation and provide training of full cage system.
