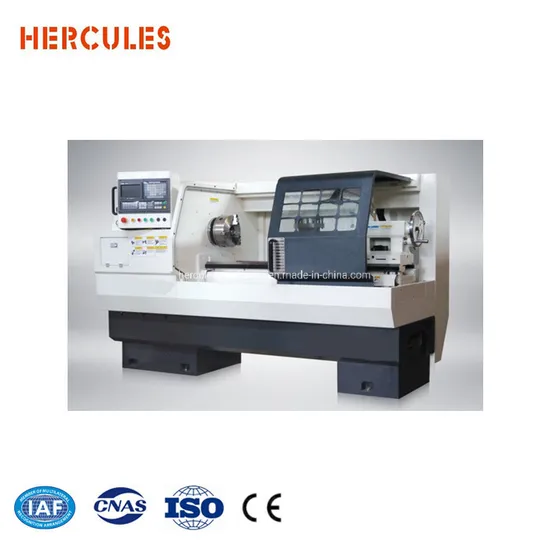

CK6150P/1000 CNC Torno Bench Turning Lathe Milling Cutting Drilling Grinding machine
| US$14,000.00-20,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CK6150P/1000
Guide Rail
Horizontal Guide Rail
Tool Holder
Electrical four tool-station
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Pallet
Specification
3300*1700*2010mm
Trademark
PLOTO OR OEM
Origin
China
HS Code
8458110000
Production Capacity
3000 Sets/Year
Product Description
| Specification | Unit | CK6150P | Product features | ||
| Max.swing diameter over table | mm | Φ500 | Frequency converter and transmisssion technology to achieve low speed high torque Spindle speed for a three-stall converter,can realize stepless speed change gear Cast resin sand casting,multiple aging stereotypes,rails uses ultrasonic frequency quenching Machine tool widely used in car end,the car round,slotting,drilling and tapping center hole,tapping,such as holes in the car,suitable for small and medium plate,shaft.Turning of slender shaft parts,drilling and other compound processing | ||
| Max.swing diameter over Drag | mm | Φ280 | |||
| Max working length | mm | 1000 | 1500 | 2000 | |
| Bed width | mm | 390 | |||
| Skateboards x maximum travelling range | mm | 300 | |||
| Tool from the spindle center distance | mm | 260 | |||
| X axis Z axis accurancy of repeat positioning | mm | X axis:0.012 Y axis:0.016 | |||
| work accurancy | mm | Roundness:0.005 Cylindricity:0.016/160 | |||
| Spindle bore diameter | mm | Φ77 | |||
| Spindle Type | C-8 | ||||
| Spindle bore taper (metric) | 1:20 | Standard equipment | |||
| Spindle variable speed type | r/min | 200~1600(High)100~600(Mid)20~130(Low) | Third conversion Lubrication System cooling system Manual tailstock CNC Double door shield Electric Four Tool-station Manual 250 scroll chuck | ||
| Speed range | r/min | 20~1600 | |||
| Power of main motor | kW | 7.5 | |||
| Rapid traverse speed | m/min | X:5 Z:8 | |||
| Stroke limit | limit switch (hard limiting) control | ||||
| No. of Tools | 4 | ||||
| Section specifications of tool | mm | 25X25 | |||
| Top Quill diameter | mm | 75 | |||
| Top Quill travel | mm | 150 | Optional | ||
| Top sleeves taper hole | 5 | hydraulic chuck Electric Six Tool-station centre-with the turret | |||
| Amount of lateral movement of tailstock | mm | ±15 | |||
| Dimension(L*W*H) | mm | 3300X1700X2010 | 3250X1700X2010 | 3750X1700X2010 | |
| Net weight | kg | 2360 | 2450 | 2600 | |
| Hercules Machinery Equipment Ltd. | |||||
Pictures for reference only:
