SR469-P5-HI-A1-E

Product Details

Product Description

Product Description
Brand:GE

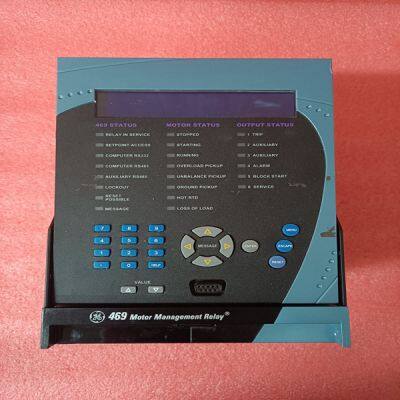

Type:SR469-P5-HI-A1-E
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Provides communication with PROFINET IO protocol through Ethernet with 100 Mbps. • Preset, two letter Alpha code locking device installed in the unit base, which prevents mounting of incompatible components. • Supports hot swap. Description The CI871 can be used to connect an AC 800M controller to PROFINET IO devices. The TP867 Baseplate has two RJ45 Ethernet connectors. CH1 connector supports 10 Mbps or 100 Mbps. CH2 connector supports only 10 Mbps. The Ethernet cable must be connected to the PROFINET IO network through an Ethernet switch. The baseplate has a code lock (refer Table 4 on page 75), which prevents the installation of an incorrect type of unit onto the TP867 baseplate. The CI871 expansion unit contains the CEX-Bus logic, a communication unit, and a DC/DC converter that supplies the required voltage from +24 V supply through the CEX-Bus.
Indicators There are six LED indicators on the front panel of CI871 to indicate various states and conditions of CI871. Table 104. PROFINET IO Interface CI871 - LED indicators Designation/Color Function F(ault) / Red The red F(ault) LED indicates a fault condition on CI871. Reset turns the LED on. Software can turn it on and off through a register in the CEX-Bus controller. R(un) / Green The green R(un) LED indicates that the CI871 is operational. Reset turns the LED off. Software can turn the LED on and off through a register in the CEX-Bus controller. RxTx1 / Yellow The yellow Rx/Tx1 LED is intended to be ON to indicate a receiving/transmitting telegram at CH1. The LED is controlled by Ethernet PHY. It is turned off by reset. RxTx2 / Yellow The yellow Rx/Tx2 LED is intended to be ON to indicate a receiving/transmitting telegram at CH2. The LED is controlled by Ethernet PHY. It is turned off by reset. PRIM (ary) The yellow LED indicates if the module is active or not. It does not describe the redundancy configuration of a module. DUAL The LED is ON when CI871 is operational in redundant configuration. This LED is always OFF as redundancy is not supported.
