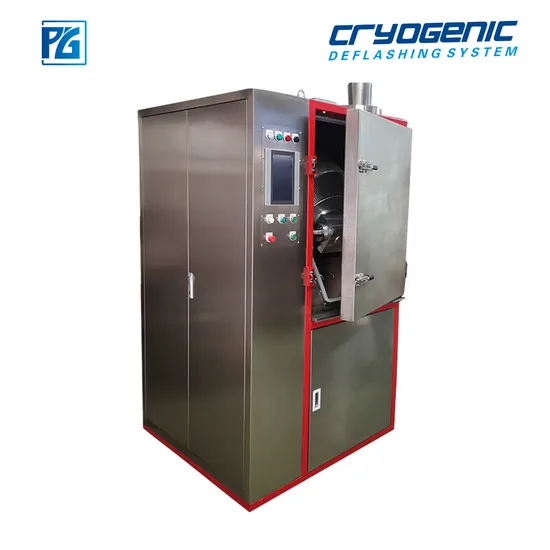

Pg-60t Silver Cryogenic Deburring/Deflashing Machine for Rubber Part Finishing System

Product Description

Introducing the PG-60T Cryogenic Deflashing & Deburring Machine (60 Liter), engineered for precision deflashing.
Product Description PROCESSING PRINCIPLE
As the temperature drops, rubber and plastic parts undergo hardening, becoming brittle and crystallized, thereby losing flexibility. During this brittle phase, they easily break under external force. The cryogenic deflashing machine leverages this principle, as the flash on molded products, being thinner, becomes brittle faster at low temperatures. The machine operates when the flash is brittle but the products remain flexible. High-speed projected special plastic media efficiently strike and clear the brittle flash, removing it without damaging the product, thus ensuring a pristine finish.
Product Feature
FUNCTIONS
Our machine excels at efficiently removing flash from small rubber and plastic components such as O-rings, gaskets, and various other molded parts, ensuring a smooth and precise finish.
Through advanced cryogenic processing, flashes are initially frozen and then removed by high-speed projection media (Polycarbonate blast), significantly enhancing the surface quality of molded rubber and plastic components.
Product Specification / Models
APPLICATIONS
A. O-rings and irregular rubber parts of various materials and sizes.
B. Microelectronic product components.
C. Precision elastomeric parts.
D. Precision injection-molded plastic parts.
E. R&D production runs.
F. Die-cast products, including zinc, aluminum, and magnesium alloy parts. Our Advantages FEATURES
High Efficiency: This machine can replace 60-80 workers in flash removal, significantly optimizing your production process.
High Precision: It meticulously eliminates tiny, hardened flashes that manual labor cannot, thereby enhancing the overall precision and quality of your products.
Low Cost: It offers a highly cost-effective solution compared to manual processing, saving you both time and money. SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-60T
SIZE(L*W*H)	1000*1000*1950MM
WEIGHT	700KG
POWER	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph
TEMPERATURE	-130 - +50ºC
PRESSURE	0.5-0.7Mpa
BARRAEL CAPACITY	60L
EFFECTIVE CAPACITY	20L
WHEEL SPEED	3000rpm - 7200rpm
COOLING MEDIA	Liquid Nitrogen
OPETATION MODE	Touch Screen
FRAME	SUS304
WHEEL DIAMETER	AL φ250mm
BLASTING SPEED	105.7m/s
PROCESSING ABILITY	200-250kg per day

OPERATION PROCESS FEATURES
High Efficiency: The machine can substitute 60-80 workers for flash removal, making your production process more streamlined and efficient.
High Precision: It removes small and hardened flashes, ensuring a level of product accuracy that surpasses manual efforts.
Low Cost: It is more cost-effective than manual processing, offering you significant savings in operational costs. Installation Instructions MACHINE PICTURES
OUR FACTORY AND WORKSHOP WORKSHOP Successful Installations
Installations Completed in Poland and USA. Our global reach and successful installations testify to the reliability and superior performance of our machines. Country Shipped
