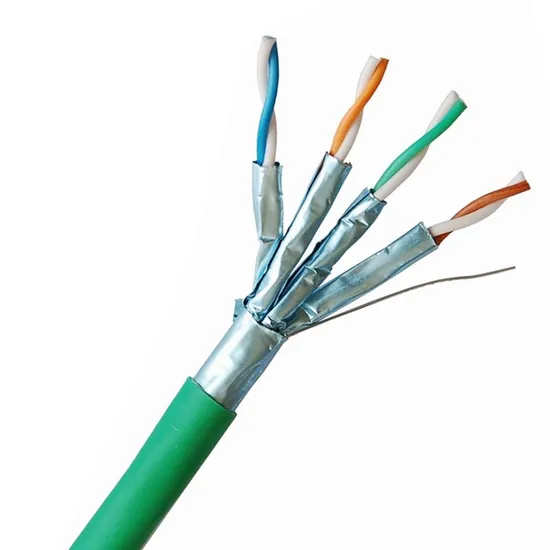

U/FTP Cat 6A Bc PVC Cm Twisted Pair Installation Cable
| US$13.00-55.00 | 100 Boxes (MOQ) |
Basic Info.
Model NO.
U/FTP CAT 6A
Cover Material
PVC
Type
Cat 6
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS
Model
Cat5
Brand
Fuu
Transport Package
305m
Specification
0.5mm conductor
Trademark
FUU
Origin
China
HS Code
8544200000
Production Capacity
5000km/Month
Product Description
| U/FTP CAT 6A Twisted Pair Installation Cable | ||||||||
| LAN CABLE | ||||||||
| | ||||||||
| Construction | ||||||||
| Conductor: | 23 AWG Solid Bare Copper | |||||||
| Pairs: | 4 Pairs | |||||||
| Insulation: | 1.35 mm Skin-Foam-Skin | |||||||
| Insulation Colors: | Blue-White/Blue,Orange-White/Orange | |||||||
| Green-White/Green,Brown-White/Brown | ||||||||
| Overall Shield | Individual Pair shield,Al/PET Foil,Foil face out | |||||||
| Drain Wire | 0.40±0.005mm TC | |||||||
| Rip Cord: | Cotton | |||||||
| Out Jacket: | 8.0±0.2 mm PVC CM | |||||||
| Electrical Characteristics | ||||||||
| Impedance | 4 - 100MHz 100±15 Ohms | |||||||
| 100 - 200MHz 100±22 Ohms | ||||||||
| 200 - 500MHz 100±32 Ohms | ||||||||
| Max.Conductor DC Resistance 20ºC | 8.7 Ohms/100m | |||||||
| Res. unbalance (%) | Max. 2.5 | |||||||
| Pair to Ground Capacitance Unbalance | 330 pF/100m | |||||||
| Transfer Impendance | Max 10 mOhms/m @100Mhz | |||||||
| Installation temp. | -30 - 50ºC | |||||||
| Operation temp. | -20 - 75ºC | |||||||
| Cross Section | ||||||||
| | ||||||||
| Application | ||||||||
| • Suitable for structured premises cabling. | ||||||||
| • For transmission of digital and analogue voice and data signals. | ||||||||
| • Especially suitable for all Class EA applications. | ||||||||
| • ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base-T.(IEEE 802.3). | ||||||||
| • Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s.(IEEE802.5). | ||||||||
| Standard | ||||||||
| IEC/ISO 61156-5; ANSI/TIA568C.2; ISOIIEC 11801 | ||||||||
| Performance Characteristics | ||||||||
| Frequency | RL (Min.) | Insertion Loss(Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) | PSNEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) |
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
| 1 | 20.0 | 2.1 | 570.0 | 45.0 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 23.0 | 3.8 | 552.0 | 45.0 | 65.3 | 63.3 | 55.8 | 52.8 |
| 10 | 25.0 | 6.0 | 545.0 | 45.0 | 59.3 | 57.3 | 47.8 | 44.7 |
| 16 | 25.0 | 7.6 | 543.0 | 45.0 | 56.2 | 54.2 | 43.7 | 40.7 |
| 20 | 25.0 | 8.5 | 542.0 | 45.0 | 54.8 | 52.8 | 41.8 | 38.8 |
| 31.25 | 25.0 | 10.7 | 540.0 | 45.0 | 51.9 | 49.9 | 37.9 | 34.9 |
| 62.5 | 21.5 | 15.4 | 539.0 | 45.0 | 47.4 | 45.4 | 31.9 | 28.9 |
| 100 | 20.1 | 19.8 | 538.0 | 45.0 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 18.0 | 29.0 | 537.0 | 45.0 | 39.8 | 37.8 | 21.8 | 18.8 |
| 300 | 17.3 | 36.4 | 536.0 | 45.0 | 37.1 | 35.1 | 18.3 | 15.3 |
| 400 | 17.3 | 43.0 | 536.0 | 45.0 | 35.3 | 33.3 | 15.8 | 12.8 |
| 500 | 17.3 | 45.3 | 536.0 | 45.0 | 33.8 | 31.8 | 13.8 | 10.8 |
| Note: The above transmission performance tor the 100M, 20±2ºC under the conditions tested. | ||||||||
| Order Informations | ||||||||
| Marking | U/FTP CAT6A 4PR 23AWG PVC CM XXX (or Per customer's request) | |||||||
| Inner Package | 305m/Spool,305m/Reel (or Per customer's request) | |||||||
| Outer Package | Color Box, Pallet (or Per customer's request) | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
