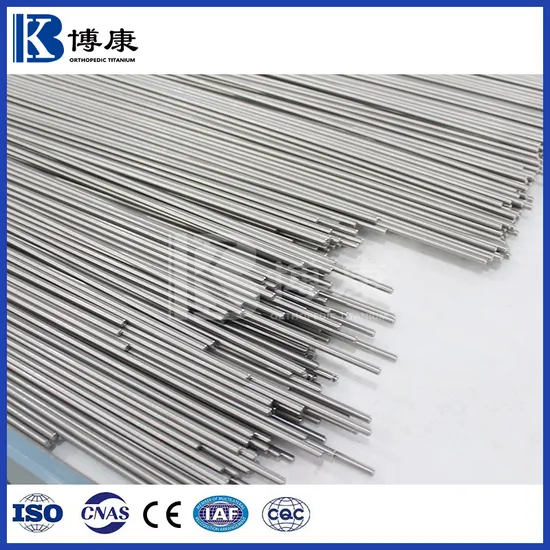

High Strength Grade 5 (Ti-6Al-4V) Titanium Alloy Bars for Medical Bone Screws

Product Description

Product Description Titanium rods are categorized into pure titanium rods and titanium alloy rods, for pure titanium rods, we mainly offer titanium rods of grades Gr1, Gr2, Gr3, Gr4, etc. For titanium alloy rods, we offer titanium alloy rods of grades Gr5, Gr9, Gr23 and so on.
We offer titanium rods in various grades and sizes for several industries, including medical titanium rods (orthopedic, dental, medical devices), aerospace (fasteners, profiles, forgings), and industrial titanium rods.
With a full process production line including melting, all titanium rods can be customized and Bokang is certified to ISO 13485:2016, ISO 9001 and ISO/IEC 17025:2017 for medical use, and our products comply with ASTM, ISO, AMS, ASM, JIS, DIN and other standards.
Titanium Bar Specifications

Grade	Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6Al-4V),Gr9(Ti-3Al-2.5V),Gr23(Ti-6Al-4V ELI), etc
Standard	ASTM F67;ASTM F136; ISO5832-2;ISO5832-3;AMS4928;AMS4965;AMS4967;ASTM B348; ASTM B863
Diameter(mm)	1.0~101.6mm
Length(mm)	500-4000
Tolerance	h6,h7,h8,h9
Shape	Round
Condition	Annealed (M), Cold rolled(Y), Hot rolled(R)
Surface	Bright Surface

High-quality titanium bar/rods with various diameters, tolerances and performances can be customized according to requirements
Titanium Round Bar Features:
High Surface Finish
Good Roundness
Small Tolerances
High Dimensional Consistency
Stable Performance
Uniform Composition
Fine Grain Organization
Excellent Overall Performance
Long Fatigue Life
Titanium Round Bar Production Process:
Sponge Titanium→Compacting Electrodes→Electrode Welding→Triple VAR Melting→Machining→Forging Billet→UT testing→Rolling Billet→Online Straightening→Centerless Lathe→UT testing→Rolling→Metallographic Inspection→Wire Drawing→Precision Straightening→Heat Treatment→Mechanical test→Microstructure test→Centerless Grinder→Eddy Current Test→Polishing→Visual and dimension inspection→Product Marking→Packaging→Delivery
Applications of Titanium Round Bar:
Titanium rods are widely used in the medical field. They are used in the manufacture of orthopedic implants (e.g., hip and knee replacements), dental implants, ultrasonic scalpels, surgical staplers, and other surgical instruments.
Chemical Composition Chemical Composition
ASTM F136 Ti-6Al-4V ELI Chemical Requirements:

Element	Composition,% (mass/mass)
Nitrogen (Maximum)	0.05
Carbon (Maximum)	0.08
Hydrogen (Maximum)	0.012
Iron (Maximum)	0.25
Oxygen (Maximum)	0.13
Aluminum	5.5-6.50
Vanadium	3.5-4.5
Titanium	balance

Mechanical Properties Mechanical Properties
ASTM F136 Ti-6Al-4V ELI Annealed Mechanical Properties:

Diameter in(mm)	Tensile strength Min, psi (MPa)	Yield strength(0.2%,offset) Min, psi (MPa)	Elongation in 4D or 4W Min (%)			Reduction of Area Min (%)
			L -	LT -	ST -	L -	LT -	ST -
<0.187 (<4.75mm)	125000(860)	115000(795)	10	...	...	...	...	...
0.187~1.75 (4.75~44.45mm)	125000(860)	115000(795)	10	...	...	25	...	...
>1.75~2.50 (44.45~63.50mm)	120000(825)	110000(760)	8	...	...	20	...	...
>2.50~4.00 (63.50~101.60mm)	120000(825)	110000(760)	8	8	8	15	15	15

Tolerance (mm)
ASTM F136 Ti-6Al-4V ELI Tolerance:

Diameter(mm)	Thickness tolerance(mm)
>3~6	0,-0.012
>6~10	0,-0.015
>10~14	0,-0.018
>14~18
>18~24	0,-0.021
>24~30
>30~40	0,-0.025
>40~50
>50~65	0,-0.030
>65~80
>80~100	0,-0.035

Product Category

Titanium Bar/Rod	Titanium Wire	Titanium Disc
Titanium Ingot	Nitinol/Nickel Titanium	Artificial Joint Castings

Certifications
About Bokang
Our Advantages
FAQ Q: Are you a direct manufacturer or trading company?
A: We're a manufacturer with more than 18 years of professional production experience.
Q: Do you offer free samples?
A: Usually, our sample is free but we need our customer to pay the freight.
Q: What is the minimum quantity per order?
A: 1 kg. For regular standard medical and aerospace materials, based on our production capacity of 20 tons per month for titanium wire and rods. the stock inventory could meet all your requirements.
Q: What products can you offer?
A: We specialize in the production of pure titanium, titanium alloy, titanium rods, wires, discs, nitinol alloy, etc.,
Q: What's the payment term?
A: When we quote for you, we will confirm with you the way of transaction, FOB, CIF, CNF, etc.
For mass-production goods, you need to pay 30% deposit before producing and 70% balance against a copy of documents. The common way is by T/T. L/C is also acceptable.
Q: What applications do your products relate to?
A: Our titanium alloys and nitinol alloys are widely used in medical, aerospace, and other Industries.
Q: How can we get your price?
A: We need the below information to quote for you:
1). Product Name
2). Standard
3). Material Grade (Chemical Composition)
4). Dimension
5). Quantity
Q: Can you do customized products?
A: Yes, we support customized products according to the customers' drawings or samples.
Q: How do you guarantee the quality of your goods?
A: We ensure quality by inspecting every process and using advanced testing equipment to conduct comprehensive checks, ensuring finished products meet customer and international standards.
Q: How do you deliver the goods to us?
A: We will usually ship the goods by sea and air according to your requirements.
