Mini bench Z5132 Vertical Drilling Machine
Basic Info.
Model NO.
Z5132
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max drilling dia
32mm
Max feed resistance
12000N
Spindle taper
Morse No. 4
Spindle travel
200mm
Spindle box travel
200mm
Spindle speed
50~2000r/min (9)
Working table stroke
310mm
Working table surface size
400×550mm
Shipping terms
EXW,FOB,CFR,CIF
Transport Package
Plywood Case
Specification
980*807*2302mm
Trademark
LUZHONG
Origin
China
Production Capacity
2000 Pieces/Year
Product Description
Mini bench Z5132 Vertical Drilling MachineProduct Description
Product Parameters
Product main technical specifications:
| Specifications | Z5132 |
| Max drilling dia | 32mm |
| Max feed resistance | 12000N |
| Max. spindle allowable torque | 200N.m |
| Spindle taper | Morse No. 4 |
| Distance from spindle axis to column guideway | 280mm |
| Spindle travel | 200mm |
| Spindle box travel | 200mm |
| Spindle speed | 50~2000r/min (9) |
| The amount of feed(mm/rev) | 0.056-1.80mm/r (9) |
| Working table stroke | 310mm |
| Working table surface size | 400×550mm |
| Distance from spindle nose to table surface | 710mm |
| Main motor power | 2.2kw |
| Cooling pump flow | 25L/min |
| Overall dimension | 980*807*2302mm |
| N/W | 1250kg |

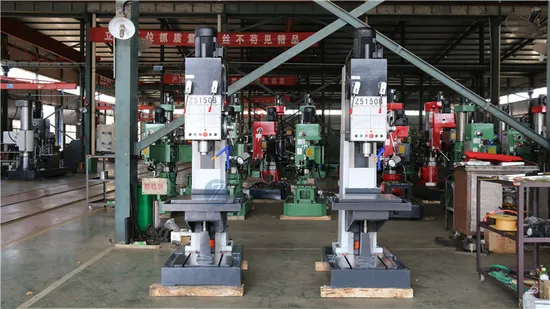

Detailed Photos
