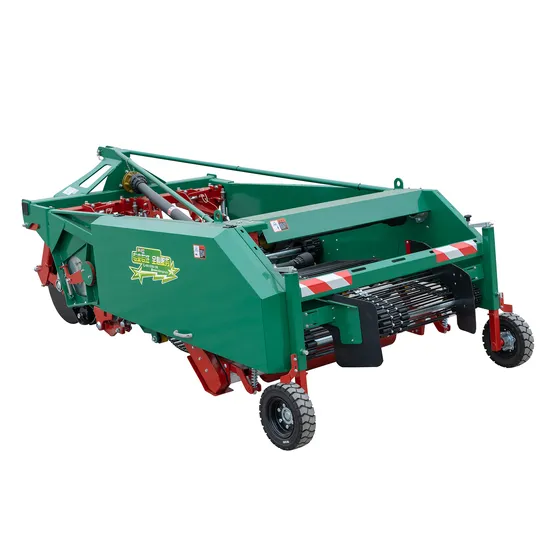

Low Breakage Rate 1800mm Wide Working Width Tractor Mounted 2 Ridges Potato Combine Harvester
| US$1,000.00-1,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
4UX-180B
Power Source
Tractor
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008
Color
Green
Condition
New
Application Field
Agriculture
Warranty
1year
Overall Dimension(L*W*H)
3880*2215*1215mm
Machine Weight
1588kg
Tractor Engine Power
88.2-118kw
Working Width
1800mm
Working Ridges
2
Digging Depth
150~300mm
Transport Package
Export Package Std
Trademark
STAR
Origin
Shandong, China
Production Capacity
50000pieces/Year
Product Description
Product Parameters| No. | Item | Unit | Parameter Index |
| 1 | Structural style | / | Suspensiion type |
| 2 | Overall dimension (length×width×height) | mm | 3880*2215*1215 |
| 3 | Machine weight | kg | 1588 |
| 4 | Tractor engine power | kW | 88.2-118 |
| 5 | Working ridges | / | 2 |
| 6 | Working width | mm | 1800 |
| 7 | Adapt to ridge width | mm | ≤900 |
| 8 | Digging depth | mm | 150~300 |
| 10 | digging shovel type | / | Combined tip shovel |
| 11 | Potato-exposing rate | / | ≥96% |
| 12 | Injury rate of potato | / | ≤1.5% |
| 13 | Breakage rate | / | ≤2% |
| 14 | Conveying device type | / | Conveyor chain grate sieve |
The 4UX-180B Potato harvester is an essential equipment for harvesting commercial and seed potatoes in large farms and large planting areas. It can complete the excavation, conveying separation and collection strip laying operations at one time. It has the characteristics of high harvest efficiency, no hurt potato, low breaking rate, high rate of bright potato, long service life and so on.
Detailed Photos
Certifications
Our Advantages
The potato combine harvester can realize the one-time excavation of potatoes, the separation of potato-soil, the separation of potato- salt, centralized collection and transportation, etc., and can harvest two ridges at a time, the working efficiency is above 0.33 hm2/h, and the loss is small and the skin breaking rate is low. Low, the potato is light and contains fewer impurities. The structure mainly consists of a frame, a depth limited wheel, a potato soil separation device, a clearing and soil removing device, a non-equidistant potato collecting device, a conveying device and a hydraulic system.
