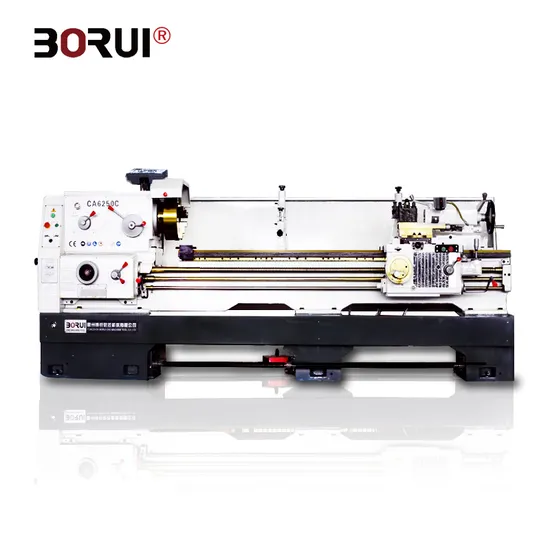

Ca6166 Ca6266 Horizontal Gap Bed Metal Lathe Machine

Product Description

CA6166 CA6266 Horizontal gap bed Metal lathe Machine Product Description
This series lathe machine is suitable for internal and external turning , tapering , and other rotating faces, metric , module and inch threads , as well as drilling and pull oil slot .
* Width of bed is wider than normal lathe machine , with high hardness on guideway , the guideway is through high-frequency quenching , wear-resisting .
* This machine is easy to operate , with rapid device for carriage , design with single hand wheel to operate .
* The strength and rigidity of machine is higher than normal lathe machine , high efficiency , suit for heavy duty machining .
The main performance characteristics:
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm.
The main specification :

Type	CA6140C CA6240C	CA6150C CA6250C	CA6161C CA6261C	CA6166C CA6266C	CA6180C CA6280C
Max. swing over bed	400mm	500mm	610mm	660mm	800mm
Max. swing over carriage	210mm	300mm	370mm	400mm	540mm
Max. swing in gap	630mm	720mm	830mm	880mm	1020mm
Max. effective length in gap	210mm
Max. length of workpiece	750/1000/1500/2000/2200/3000/4000mm
Width of bed	400mm
Section of turning tool	25×25 mm
Main spindle motor	7.5kw(10HP)
Spindle
Spindle speed	16--1400rpm(24step)
Spindle bore	52mm (80mm),(105mm)
Spindle taper	No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed
NO. of feed	(64 kinds)(for each)
Range of metric threads	(1-192mm) (44 kinds)
Range of inch threads	(1-24tpi) (21kinds)
Range of module threads	0.25-48 (module 39 kinds)
Range of diametral pitch threads	1-96DP (37 kinds)
Tailstock
Max. tailstock spindle travel	150mm
Tailstock spindle diameter	75mm
Taper of tailstock spindle centre hole	1-96DP (37 kinds)
Packing dimensions (L*W*H)
Overall dimensions for 750mm	2550×1140×1750mm
Overall dimensions for 1000mm	2700×1140×1750mm
Overall dimensions for 1500mm	3200×1140×1750mm
Overall dimensions for 2000mm	3700×1140×1750mm
Overall dimensions for 2200mm	4030×1140×1750mm
Overall dimensions for 3000mm	4850×1140×1750mm
Overall dimensions for 4000mm	5800×1140×1750mm
Weight (kg)
Overall dimensions for 750mm	2100	2170	2300	2380	2520
Overall dimensions for 1000mm	2190	2260	2380	2570	2720
Overall dimensions for 1500mm	2350	2420	2577	2810	2980
Overall dimensions for 2000mm	2720	2790	2940	3050	3260
Overall dimensions for 2200mm	2800	2940	3120	3390	3490
Overall dimensions for 3000mm	3300	3450	3600	3930	4200
Overall dimensions for 4000mm	3500	3750	3950	4580	4850

Standard Accessories: Living Center 3-jaw chuck
Dead Center Toolpost protection
Steady rest Chuck protection
Follow rest Leading screw guard
Foot plate Cooling system
Face plate Lubrication system
Back guard Work lamp
Tool box
Optional Accessories:
Taper attachment 4 jaw chuck
Digital Readout Quick Change ToolpostAs shown in below
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have Company Profile
