Mt150s Gear Drive High Precision Universal Drilling Milling Machine

Product Description

MM-MT150S - Gear Drive High Precision Drilling and Milling Machine - MAXNOVO MACHINE

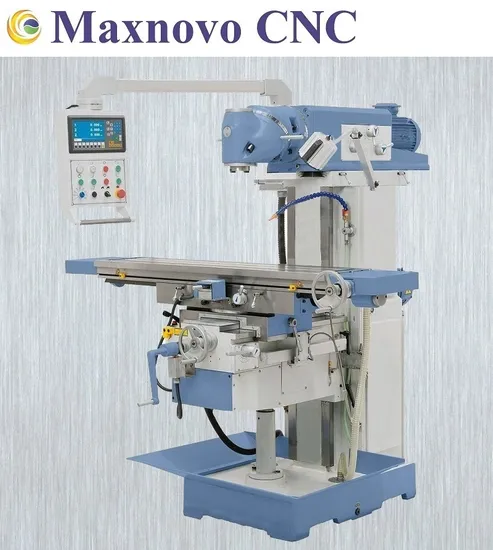

This kind of MM-MT150S is the versatility and compact Universal Milling Machine, with Rectangular guiding in Y-axis and Z-axis, use the advanced Servo-Motor drive for feeds and rapid feed in all three axis. The solid heavy grey cast iron construction making this high precision of Universal Milling Machine ideal for small and medium-sized series in workshops.
Product Description

Compact and Versatile Universal Milling Machine with Servo-Motor drive and Large Work Space
Main Feature :
Convincing Arguments : Quality, Efficiency and Price Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing Powerful Servo-Motor drive for automatic table feeds and rapid feed in all three axis The milling table features a large setup area and can be rotated in linear direction Quter arbor support for horizontal milling, mounts to cutter head Universal cutter head swivels on 2 planes - quick change-over from horizontal to vertical machining By combining both swivel levels, almost any spatial angle can be set Heavy, solid design using premium cast meehanite Vertical and horizontal milling position Rugged machine construction and Milling head pivots and rotates to any spatial angles Smooth action due to polished gearwheels running in an oil sump Minimum downtime due to rapid positioning of work table and rapid feeds in all axes Generously dimensioned, decoupled hand-wheels with scales Precision-ground guide-ways with hardened surfaces for long-term accuracy and wear-resistance Feed system controlled by Advanced Servo-Motor in X-axis, Y-axis and Z-axis automatic Control panel swivels for comfortable operation Large rectangular guide in the Y-axis and Z-axis guarantees stability Universal milling head system Huron "adjusts to various angles" Coolant system and chip tray are included Large rectangular guide-ways ensure precision and quiet operation Precision-made headstock gears with hardened and ground gears Clearly arranged spindle speed control unit on machine arm Solid, grey cast iron machine construction eliminates vibrations Work table can tilt-able 45 degree is optional spare part 3-axis digital position indicator is optional spare part Certificate of Original (CO, FORM A, FORM E, FORM F )
Product Parameters

Technical Data :

Product Name :	High Precision Universal Milling Machine with Servo Motor
Product Item :	MM-MT150S
Working Area
Table Size :	1370 X 300 mm
Max. Load Capacity of Table :	300 KGS
T-slot :	3 Pieces X 14 mm (width) X 80 mm (distance)
Work Table Tilt-able :	-45 degree to +45 degree (optional)
Milling Head
Spindle Taper :	ISO 40 (DIN2080)
Spindle Speed :	45--1660 RPM (11 speeds)
Milling Head Swivel Range :	360 degree
Distance Spindle Nose to Table Surface :	150--550 mm
Distance from Spindle to Column :	100-- 590 mm
Travels
Max. Travel Longitudinal (X) :	1000 mm
Max. Travel Cross (Y) :	380 mm
Max. Travel Vertical (Z) :	400 mm
Feeds
Feed Speed Horizontal (X) :	30-830 mm/min (9 kinds)
Feed Speed Cross (Y) :	30-830 mm/min (9 kinds)
Feed Speed Vertical (Z) :	23-625 mm/min (9 kinds)
Rapid Feed X-axis :	1335 mm /min
Rapid Feed Y-axis :	1335 mm /min
Rapid Feed Z-axis :	1000 mm /min
Drive Capacity
Main Motor :	3000 W
Motor Rating X-axis Feed :	10 Nm (Servo Motor)
Motor Rating Y-axis Feed :	10 Nm (Servo Motor)
Motor Rating Z-axis Feed :	10 Nm (Servo Motor)
Coolant Pump Motor :	60 W
Connect Voltage :	Three Phase 400V Voltage
Gross Weight :	1980 KGS
Packing Size :	1980 X 1900 X 1920 mm
Standard Accessory :	Servo Motor, Coolant System, Central Lubrication, Work Lamp, Power Feed for all three axis, Drawbar M16, Tools and Toolbox

Our Advantages
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance. Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE. The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines . Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts. The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards. In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy. Intensively Production Since 2003 the MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China.
There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning
of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine.
We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.
From all the production material even a single resistor or a single cable, to hardware functions and sample test,we check
all the components and each possible performance of them. With every product we supply, we will make sure there is no mistake.
But due to some unavoidable reasons, if your purchase products from us are proven to be defective,we always
would take responsibility and take effective actions immediately for you.
High Precision Milling Machine for Demanding Users !
FAQ
1.Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.

3. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.


4. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 1-- 2 month since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case.
