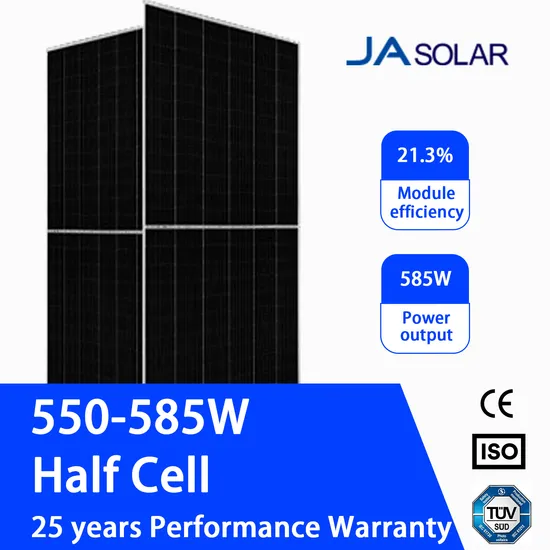

Ja/Mysolar/Aioties Solar Best Cost 585W 580W 575W 570W 560W 550W Photovoltaic Solar Modules Solar Cell Panel Price for Solar Energy System

Ja/Mysolar/Aioties Solar Best Cost 585W 580W 575W 570W 560W 550W Photovoltaic Solar Modules Solar Cell Panel Price for Solar Energy System

US$0.07-0.11 10,000 wp (MOQ)

Basic Info.

Model NO.
JAM72S30 530-555/MR
Number of Cells
144
Application
Solar Panel System/Solar Pump/Power Station
Condition
New
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Weight
28.1kg
Efficiency
21.3%
Frame
Anodized Aluminium Alloy
Solar Cell
Mono Perc 182 X 91mm
No.of Cells
144 (6X24)
Connector
Mc4
Cable
Output Cables TUV 1X4.0mm2, Length 900m
HS
854143000
OEM
Acceptable
Junction Box
IP68, Three Diodes
Glass
3.2mm, Anti-Reflection Coaring High Transmission
Tpt Backsheet
White/Black Backsheet
Transport Package
Carton with Pallet
Specification
2278x1134x35mm
Trademark
JASOLAR
Origin
China
HS Code
8541402000
Production Capacity
3000PCS/Wek

Packaging & Delivery

Package Size
227.00cm * 113.00cm * 3.50cm
Package Gross Weight
28.000kg

Product Description


SPECIFICATIONS
Module TypeJAM72S30-530/MRJAM72S30-535/MRJAM72S30-540/MRJAM72S30-545/MRJAM72S30-550/MRJAM72S30-555/MR
Maximum Power (Pmax)530535540545550555
Open-circuit Voltage(Voc)49.349.4549.649.7549.950.02
Maximum Power Voltage(Vmp)41.3141.4741.6441.841.9642.11
Short-circuit Current(Isc)13.7213.7913.8613.931414.07
Maximum Power Current(Imp)12.8312.912.9713.0413.1113.18
Module Efficiency (%)20.50%20.70%20.90%21.10%21.30%21.50%
Power Tolerance0~+5W
PmaxTemperature Coefficients of Isc+0.045%/°C
Temperature Coefficients of Voc+0.275%/°C
Temperature Coefficients of Pmax-0.350%/°C
STCIrradiance 1000W/m²,cell temperature 25ºC,AM1.5G

MY Solar Technology Co., LTD. (MYPVTECH) is a major member of MY Solar Group (MY Solar),founded in 2010. MY SOLAR is a professional manufacturer engaged in the research & development, manufacturing & sales business of solar modules, inverters, energy storage batteries, solar power systems and supporting products for solar power stations.
MY Solar is deeply trusted by new and old professional customers around the world for its new energy products with reasonable design, sophisticated technology, rich categories and reliable quality, as well as professional, high-efficiency and refined service characteristics.
The annual production and sales of new energy products include: 3GW solar modules, 250,000 solar systems and 1.2GW solar power plant equipment. Customers are located in Europe, America, Asia, Africa and other regions. MY Solar has reached brand, product and channel cooperation with many well-known manufacturers in the industry, providing stable OEM and ODM services for relevant well-known manufacturers, and providing more cost-effective Tier1 brand product sales services for MY SOLAR customers simultaneously.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:What are the advantages of your company?
A:We are a factory, and we also cooperate with other brands,such as Longi,JA solar,Jinko,Trina,Canadian Solar,GCL,SUNTECH,Yingli etc., to provide customers with better prices and more choices.
Q:May I have a piece of sample to check the quality?
A:Welcome to place the testing order to check the quality or for testing.
Q:How about the delivery time?
A:15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
Q:Where is the port of loading?
A:Shanghai,Ningbo.
Q:Can you do OEM?
A:Yes.
