Manual Molds for Concrete Retaining Wall Block Making

Product Description

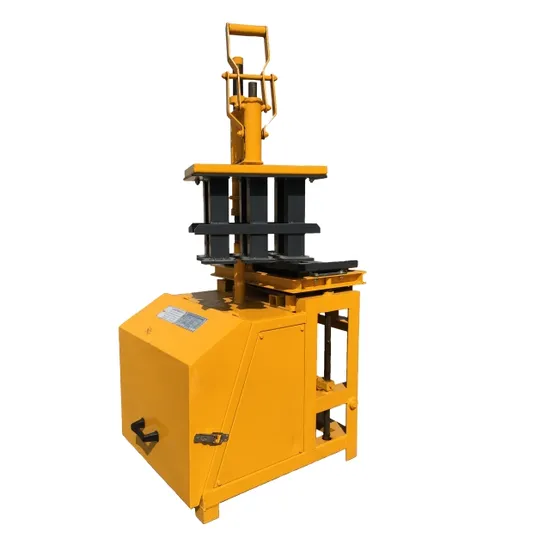

TOPMAC Small Concrete Cement Block Paving Making Machine The TOPMAC Small Concrete Cement Block Paving Making Machine, model BM01, is an ideal choice for those starting out in the block industry. This manual machine can manufacture single 9" hollow blocks, narrow channels, and paving stones, among other options.
Designed for versatility, this stand-type, high-density hand-operated block making machine can be easily transported to any working site. It allows you to cast blocks on wooden or steel pallets, which are inserted on both sides.
Featuring a top pressing ram operated by a toggle mechanism, this machine ensures efficient block production. The bottom plate is vibrated using either a lightweight vibrating motor or a diesel engine-powered eccentric vibrator.
With a simple press of the operating lever, the mould releases the blocks onto the pallet. The blocks, along with the pallet, can then be manually removed and kept for wet drying.
This machine is capable of producing interlocking pavement blocks in various shapes and colors, allowing for endless design possibilities.
Product Specifications:
Company Name: Jurong Topall Machinery Co., Ltd. Product Name: Topmac Small Concrete Cement Block Paving Making Machine Keywords: Brick Forming Machine, Construction Equipment, Hollow Block Making Machine, Block Making Machine, Manual Block Making Machine, Concrete Block Machine, Construction Machinery, Cement Machinery, Paver Machine, Brick Making Machine, Cement Block Making Machine, Concrete Hollow Block Machine, Cement Production Line, Paving Block Machine, Cement Brick Machine, Block Forming Machine, Block Moulding Machine, Clay Brick Making Machine, Cement Brick Making Machine, Electric Block Moulding Machine Attributes: CE and ISO certified, Non-Customized, Other automation level Experience the convenience and efficiency of the TOPMAC Small Concrete Cement Block Paving Making Machine. Start your block production journey today!

9" Hollow Blocks	500 pcs.	6" hollow blocks	500 pcs.
Paving Stone	30 m2	Necessary employment	04 persons

Main Specifications

	BM01E	BM01D
Power	1.4 hp	7 hp
Power Source	Electric motor	Diesel engine
Dimension	720*450*1520 mm	720*450*1560 mm
Weight	86 kg	92 kg

Shipping, Delivery & Maintenance

20' container can be loaded with	50 units - 2 decks
Delivery time	3 weeks after confirmation of the order
Maintenance
The machine should be cleaned and kept lubricated at all points where grease caps have been provided, and tighten all the connecting bolts after the working shift. The Engine oil is suggested to be changed every 70 operating hours.
