Tire Recycling Machine for Car Tire/Passenger Tire/Nylon Tire/Bicycle Tire/Motorcycle Tyre with Ce/500-1000kg/H

Product Description

3E's waste tire recycling production line is high quality and efficient with whole line by CE certification. It can be according to customer's requirements to recycling waste tires of 400-3000mm in diameter. Output size can be controlled in the range of 5-100mmm, and the capacity can reach to 200-10000kg/h. The line is able to automatic separate rubber, wire and nylon fibers effectively. And whole line adopt to the PLC control system for easily operation and maintenance with advantages of low energy consumption and long service life.
Tire Recycling Line characteristic: Capacity: 200~10000kg/h
Scope of application: Diameter of the tire : 400-3000mm
Output size: 5-100 mesh (Can be custom-made)
Complete separation: The Rubber Crumbs,Steel and Fibre can be separated automatically
Control system: Adopt PLC control system, it is simple and easy to control and maintain. For example, it is only need 4-6 persons to operate a Tire recycling (beads) production line with 3000kg/h capacity
Low energy consumption: The installed power of Tire recycling production (beads) line with capacity 3,000kg/h is about 550kw
Equipment required area: about 400 square meter, 6 meter high
Characteristic of blade: Long life cycle, High utilization, Multiple maintenance
Safety: User-friendly design, safety and security Patented: ZL 2010 2 0602082.4/ZL 2010 2 0602159.8
Application: Modified asphalt, Rubber floor tile, Rubber product which is produced by replacing raw rubber with rubber powder, Reclaimed rubber, and so on.

Main equipment:

Crocodile shears	Cut the tires into small pieces to facilitate follow-up subsequent USAise.owon (beads) line with capacity 3,000kgproduction line with 3000kgmachine processing, it can handle the tires with maximum diameter of 3700mm.
Debeader	The debeader is for taking out two pieces of thick steel wires around the tire bead. The main purpose is to protect the blades of the two shaft shredder and the crusher.
Tire bead debeader	Cutting out the wire from the tire bead. The main purpose is to protect the blades of the Two shaft shredder and the Crusher, it can handle the tires with maximum diameter of 3700mm.
Two shaft shredder	Size reduction. A powerful two shaft shredder is used to shred the tyres into smaller pieces (50-200mm) which is easier for following process and prepare them for the rubber/steel separation stage.
LGF Rasper	Rubber/Steel separation. It's the second shredding stage is designed to shear the steel from the rubber by using a rasper. Following this stage the rubber, steel and fibre will be in a loose mix ready for further separation.
Rubber crusher	Rubber granulation. The rubber is now free from steel and fibre but will not be a uniform size. We use a rubber granulator to determine the size of the granulate that is required. Normally between 2mm - 4mm.
Rubber miller	You can add further value to your rubber by milling it into rubber powder. Rubber powder has a wider range of applications and as such carries higher rebate values. A milling machine is used to turn the rubber granulate into 40 - 80 mesh rubber powder.

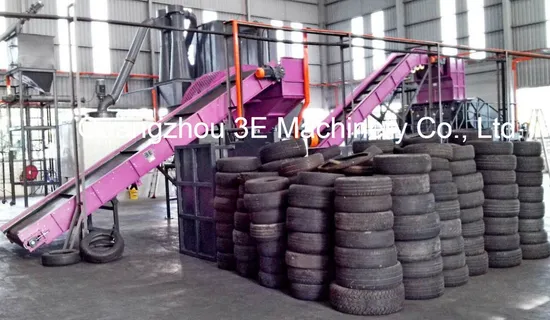

Project case
Certification
We awarded 18utility model patents and 3 invention patents.
Company profile
3E Group is an integrated company specialized in developing, manufacturing, distributing and providing recycling machinery solutions. Our main entity " Guangzhou 3E Machinery CO. Ltd" founded in 2003, has currently become focusing on "Shredding" and "Recycling industry" modern enterprise.
Technology is the core-competitiveness of 3E Group, we are active in the recycling market and keep cooperating with well-known enterprises in Europe and the USA. Meanwhile, 3E Group keeps on improving and innovating, so far, we awarded 18utility model patents and 3 invention patents.
"Efficient Economical & Environmental" is the traditional idea of 3E Group. With its own intellectual property and solid technological team, our products have been already sold to over 90 regions and countries which include the USA, Europe, Australia, Southeast Asia, Latin America, and Middle East.
Our service
1. Pre-sale support
l 3E Machinery consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
l On-site inspection.
2. After-sale service
l 3E's skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a 3E technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
l 3E holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.
3. Technical support
l 3E provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
l Regular return visit.
