Chickpea Can Production Line Canned Beans Production Line Machinery

Product Description

Product Description
Shanghai Leadworld is specialized in producing all kinds of canned Production Line Equipment for 12 years, such as Canned Fish, Canned Fruit, Canned Mushroom, Canned Meat, Canned Beans, Canned Vegetables Production Line, etc. According to the plant area, provide cleaning, sorting, precooking, cooling, correction, filling, sterilization to the rear packaging line and other equipment. Such as: empty tank unloading, empty tank cleaning, solid tank stacking, labeling, packing and other machines. We can also provide design solutions according to your needs.
Automatic Canned Beans/Corn Production Line

Product Name	Chickpea Can Production Line Canned Beans Production Line Machinery
Material	stainless steel
Application	Corn,sward beans, soybeans, green beans, chickpeas beans, red beans, mung beans, green peas
Operation mode	Fully automatic / semi-automatic (customized)
Capacity	3000-12000 BPH(It can be customized according to the capacity)
Support bottle type	Glass Bottle,Iron Cans,Plastic Jar

Application area
Product Show

Item	Name	Model specifications
1	Washing Machine	Bubble(dry bean 1T/H)
2	Precooker	With cooling 5min (85ºC-90ºC) L=10m W=1100mm
3	Soak	With lifting
4	Washing machine	Bubble +lifting
5	Washing machine	Empty can
6	Lifting conveyor	moving to tank of filling machine
7	Filling Machine	use measuring working way
8	Filling Machine	liquid
9	Sealing Machine	Sealing Can(7113 can)
10	Loading Can	By magnetic
11	Unloading Can	By magnetic
12	Drying	By air
13	Labeling Machine	Sticker label
14	Print Machine	Print date(VIDEOJET)
15	Carton Erector	Automatic
16	Carton Sealing	Use tape

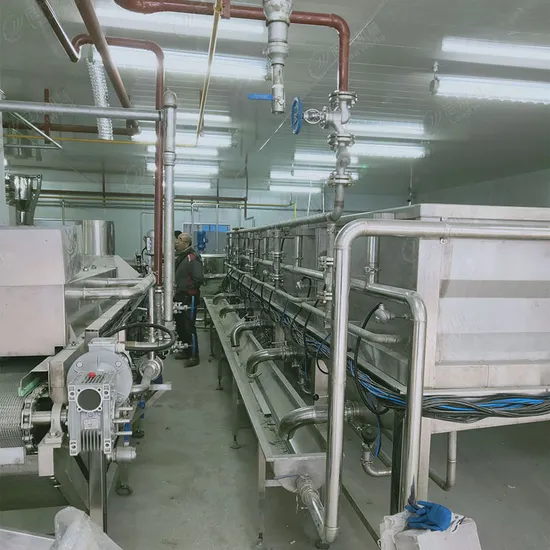

some installing pictures:
Material Washing line
Empty Can De-palletizer
empty cans depalletizer system
loading and unloading for sterilization system
some descriptions of our machine Cooling machine
Except Motor and bearings ,other standard parts are made of stainless steel SUS304 / 2B material, in full compliance with the export of food hygiene requirements.
This machine series are suitable for all kinds of vegetables,fruits, fungi's pre-cooking and cooling of the product.Precook temperature and speed can be set according to the technical requirement.
The machine uses SUS304 stainless steel chain plate, mesh belt,mesh belt with high intensity, small scale, difficult deformation, easy maintenance, etc., the
whole machine balanced running, low noise, greatly improving the work efficiency
This machine is heating mode of electric heating.The machine transmission system adopts gear motor speed regulation which
make the conveyor belt speed adjustable.
Selecting conveyor
Apply to primary raw materials selecting and cutting treatment.
The machine adopts disassembly design.Quantity of working station can be customized according to clients'actual demand.
The whole machine adopt SUS304 stainless steel.
1.1 Lifting conveyor main body side chain plate:Plate thickness:δ2.0mm Material:SUS304.
When produced according to the actual size.
1.2 Roller:Material SUS304,diameter is based one the actual
load,cooperate with the plus or minus tolerance.
1.3 Riding wheel:Material Nylon processing molding,diameter is based one the actual load,cooperate with the plus or minus tolerance.
1.4 Bun foot:Nylon injection molding,Cooperate with stainless steel adjusting screw M16.
1.5 Guardrail part adopts big Caluminum trackCooperate with wear-resisting sheath;
1.6 Connecting plate:plate wicknessδ3.0mm Material:Stainless steel bending forming;
1.7 Connection between mesh belt:Nylon board or ball, according to the customer's product selection.
1.8 Accessories:Mounted Bearings,kinds of SUS304 screws,etc.
Conveying carrier part
2.1 Module length:According to the effective length*widthness (mm)(When produced according to the actual size);
2.2 Module belt varieties:Flat grid, grid, according to the actual situation to choose material.
2.3 Material:POM,PP,PE
2.4 Color:White,Blue,Green.
3.Power system
3.1 Gear motor:Worm gear and worm gear motor,
Protection class IP55,Power P=1.5KW/0.75KW;
3.2 Speed:V=0-25 Meter/MIN;
3.3 Speed choice: Denmark Dan,foss inverter frequency control motor speed.
4.1 Electric cabinet material:1.5mm SUS304 Stainless steel plate bending welding forming.
4.2 Electronic components:disconnector,AC contactor, button switch,etc. Brand: S,chneider,France.
