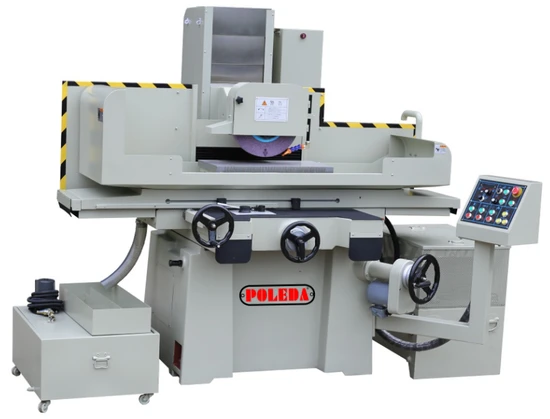

3060 High Precision Metal Processing Surface Grinding Machine Manufacturers Direct Sales

Product Description

Product Description
Features of Surface Grinding Machine
High precision, exceptional rigidity, advanced automatic lubrication system, and ideal for molding grinding.
High Precision and High Rigidity: The primary casting of the surface grinding machine is crafted from superior cast iron, meticulously annealed to eliminate internal stress, ensuring long-term mechanical precision stability. Furthermore, it incorporates a Taiwan-type direct spindle coupled with P4 class ultra-precision roller bearings, maintaining low noise and zero vibration even at high speeds, delivering high torque-perfectly suited for forming grinding.
Automatic Lubrication System: Our surface grinder boasts an advanced automatic lubrication system featuring an electromagnetic pump for forced oil injection, enabling automatic circulation. This system ensures effective lubrication for every screw and sliding surface.
Product Parameters
Surface Grinding Machine Features:
1. The main castings are made from high-grade cast iron, undergoing annealing and shock aging treatments to remove internal stress, thereby significantly enhancing stability and preventing deformation.
2. To boost work efficiency, the machine's material is thick and stable, fulfilling the demands for both heavy cutting and fine grinding with excellent rigidity.
3. The guide rail is coated with top-notch wear-resistant adhesive, and precision hand-scraped patterns ensure lasting accuracy and durability.
4. Spindle arm end swing precision at 0.003mm.
5. Precision ball screw design for smoother operation, heightened accuracy, and extended durability.
6. Independently designed hydraulic system components ensure low vibration and minimal noise.
7. Thoughtful cable pipeline design enhances durability and reliability.
8. Lubricating oil system features boot self-test, fault alarm, automatic cycle, and a pressure sensor to prevent guide rail lubrication failure.

surface grinding machine		Model number	3060AH/AHR/AHD/NC/CNC	4080AH/AHR/AHD/NC/CNC
		unit	specification	specification
Table area		mm	600*300	800*400
Maximum left and right movement		mm	600	800
Maximum amount of movement before and after		mm	300	400
Maximum distance from table to spindle center		mm	540	600
Maximum weight of table		kg	350	350
Flat gloss			R0.25	R0.25
Table T-slot		mm*N	14*1	14*3
Table speed		m/min	5--23	5--25
Front and rear hand wheel feed	1 frame	mm	0.02	0.02
Front and rear hand wheel feed	1 round	mm	4	5
Automatic feed front and rear		mm	0.1-8
Dart back and forth	50HZ	mm/min	790	990
	60HZ	mm/min	950	1100
Grinding wheel size	Outside diameter x width x inside diameter	mm	ø355*20~40*127	ø355*20~45*127
Spindle speed	50HZ	R.P.M	1450	1450
Spindle speed	60HZ	R.P.M	1740	1800
Upper and lower hand wheel feed	1 frame	mm	0.01	0.001
	1 turn around	mm	2	0.5
Automatic feed rate		mm	/	0.005-0.025
Rapid up and down movement		mm/min	/	230
Spindle motor		HxP	5*4	7.5*4
Up and down drive motor		HxP	/	750W
Hydraulic motor		HxP	2*4	2*4
Flush motor		HxP	1/8*2	1/8*2
Front and rear drive motor		HxP	40W	150W
Machine height		mm	1830	2600
Floor space		mm	3500*2500	2360*2190
Weight (approximate)		kg	2100	2900

Remark
AH Left and right hydraulic, front and back step, up and down manual.
AHR Left and right hydraulic, front and back step, up and down fast lift.
AHD Left and right hydraulic, front and rear step, up and down servo automatic control.
NC Left and right hydraulic, front and rear servo, up and down servo automatic control.
CNC X, Y, Z, three-axis CNC control.
