High-Speed Universal Knife Sharpener Cutter Grinder Machine Tool Post Lathe Grinder From China

Product Description

Product Description

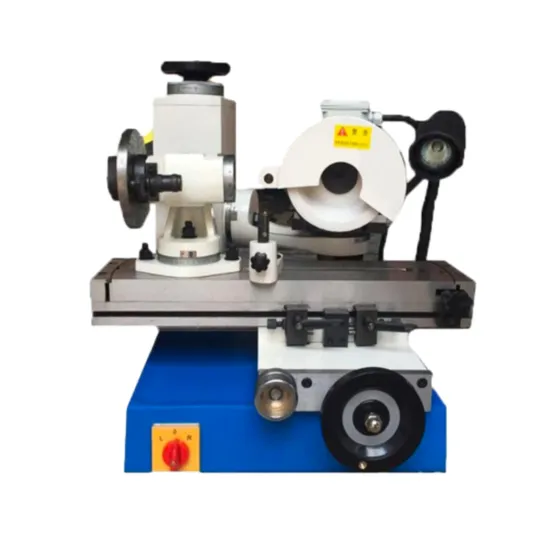

Universal cutter grinding machine features
1.The workbench of this machine uses precision screw slide bells and high-precision dovetail guide rails, ensuring smooth and lightweight operation of the bed. Compact structure and precise transmission. All Morse spindles in the attachment are finely processed by machining centers to ensure the accuracy of tool grinding.
2.The motor can rotate 360 °, when grinding tools of different materials with two grinding wheels on both sides, as long as the grinding wheel head is rotated, it can start grinding without the need to replace the grinding wheel. This can increase safety and reduce the exchange and repair time of the grinding wheel, increasing the controllability of tool grinding.
3.This machine uses high-strength FC30 cast iron to maintain mechanical accuracy for a long time. Mainly used for grinding various cutting tools. It has multiple functional accessories, and users can choose and configure accessories reasonably according to the requirements of grinding tools.
4.This machine can be equipped with various accessories to grind various cutting tools: this machine can grind various end mills, end mills, R-type milling cutters, cylindrical milling cutters, three sided edge milling cutters, single angle milling cutters, reamers, turning cutters R-type turning cutters, hobbing cutters, drill bits, taps, engraving cutters, powerful cutting tools, circular cutting cutters, and other types of cutting tools.
Accessories optional
Product Parameters
Universal Tool Cutter
Sharpening Grinder Main Technical Paremeters

Items	WD-800F
Grinding diameter	200mm
X axis Table travel	280mm
Y axis Table travel	170mm
Z axis travel	120mm
Grinding wheel rotation angle	360°
Grinding wheel speed	2800rpm
Power	¾ HP
Worktable size	130*520mm
Grinding wheel size	Φ125*50*Φ32
N.W./G.W.	160kg/168kg
Parking size	700*630*630mm
