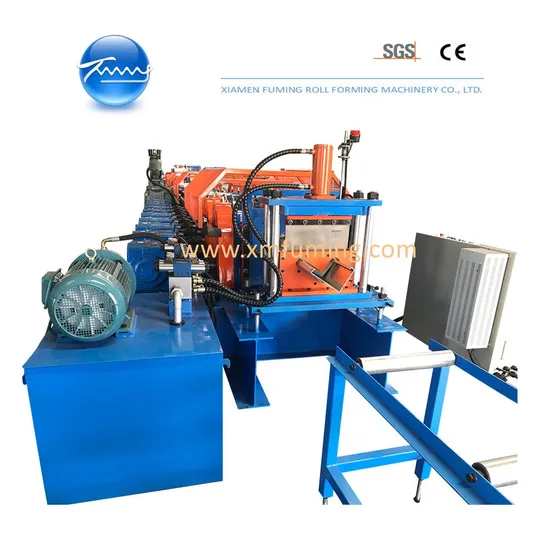

Roll Forming Machine for Container Vertical Post Container House Machine
| US$30,000.00-60,000.00 | 1 SET (MOQ) |
Basic Info.
Certification
CE, SGS
Condition
New
Customized
Customized
Usage
Container
Transmission Method
Gear/Sprocket, Gear Box, Toroidal Worm Box
Color
Customized
Thickness
4.0mm
Yield Strength
250MPa
Transport Package
Container
Origin
Xiamen
HS Code
8455229090
Production Capacity
10sets/Month
Product Description
| ROLL FORMING MACHINE FOR CONTAINER VERTICAL POST | |
| Material Specification | |
| Thickness | 4.0mm |
| Material | GI |
| Yield strength | 250MPa |
| Machine Components | |
| 7Ton*650mm Hydraulic Decoiler | |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 4KW motor |
| Expanding type | Link connect expanding system |
| Load capacity | Max.7Tons |
| Coil Inner-diameter | 510±30mm |
| Coil width | Max.650mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Pre-leveling and Feed-in Device | |
| Pre-Level Device with 4 over 3 shafts to remove the Coil-set, Manual control | |
| Roll Forming Machine | |
| Driving system | Gear box |
| Roller material | Cr12, heat treatment, HRC58~62 |
| Option for roller material | Cr12Mov |
| Shafts Diameter | Φ95mm |
| Servo motor to drive | 37KW |
| Line speed of rollformer | Approx. 20m/min or customized |
| Hydraulic Post Punching & Cutting Device | |
| Punching & Cutting | Stop to punch and cut |
| Cutting type | Slug breaker |
| Punching & Cutting tool material | Cr12Mov, heat treatment |
| Hydraulci pump motor | 15KW |
| PLC Control System | |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1mm |
| Control Voltage | 24V |
| Product Rack | 6 meters×1 |
