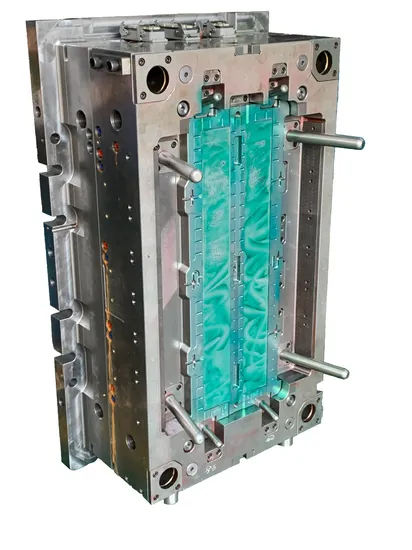

High Precision Plastic Injection Tooling for Domestic Medical and Industrial Purpose

Product Description

High Precision Plastic Injection Tooling for Domestic Medical and Industrial Purpose Product Description

We are specialized in the design and fabrication of plastic injection mould, die casting mould, rubber mould. We provide the mass production service for the parts and offer different prices per your varied volume of production demand. Please kindly send us your request.

Part 2D dwg, 3D file, or sample picture with measurement (3D in IGS, stp format, etc):
Tooling steel:
Standard mold base or not:
Runner system (Cold or Hot):
Mold cavity: multi-cavity tool, shut-off gating design for each cavity.
Delivery address:
1. Automotive Sector2. Powered Tools Industry3. Home Appliance4. Medical Industry5. New Energy Application
Product Parameters
Tooling Specifications and Requirement

Tool Life Cycles	Extremely High Volume	High Volume	Low Volume
2D Design Drawings
3D Design Drawings
Component ID
Tool Steel ID
Cycle Counter
Spare Ware Parts
Spare Parts List
Fully Automatic Operation
DFM Report	Shall be completed and approved before mold build. All part model changes shall be approved. Report include: KO locations, gate locations, parting line, split lines, mold flow analysis (when required), cosmetic issues, dimensional issues.
Cpk Requirement	Required Cpk requirement for critical dimensions.
Cycle Time Target	Mold cycle time shall meet or exceed targets while producing parts within the Cpk requirements.
Critical Dimensions	Percentage of print tolerance to nominal, mold cavity dimensions of critical dimensions shall be held within.
Minor Dimensions	Percentage of print tolerance to nominal, mold cavity dimensions of critical dimensions shall be held within.
Self Lubricating Hardware	Hardware that sees movement should be self lubricating per hardware requirements.
Certified Tool Steel	Tool steel shall be certified from steel provider.
Mold Flow Analysis	(when required)
Mold Dimensional Study
Part Dimensional Study

Service we supply	OEM Die Casting Service , Mold Making , Machining and Surfacetreatment
Process Technology	Gravity die casting, low pressure die casting, high pressure die casting
Material For Die Casting	Aluminum Alloy (ADC12, A380, AlSi10MgFe)
Drawings Format	2D ( CAD ,PDF ,JGP) or 3D ( STEP, IGS )
MOQ	2000 Pieces
Lead Time	within 35 - 45 days
Surface treatment	Pinting, powder coating, anodizing, chromizing
Process flow	Smelting - Die casting - Gate Removal - Deburring - Polishing - CNC milling - Bushing Assembly - Inspection - Warehouse Entry
Features & Advantage	1. High machining accuracy, the flatness within 0.05mm. ID within ±0.02 2. High finish appearance, smooth surface roughness is Ra1.6 after machining.
Quality Assurance/ Tolerance	GB/T19001-2016 ISO 9001:2015, GB/T240001-2016 ISO 14001:2015, RoHS

Inquiry Basic Information:
Part 2D dwg, 3D file, or sample picture with measurement (3D in IGS, stp format, etc):
Tooling steel:
Standard mold base or not:
Runner system (Cold or Hot):
Mold cavity: multi-cavity tool, shut-off gating design for each cavity.
Delivery address:
Our Advantages
The Strength of SUN HUA:
1. Die casting tool expertise.
2. Integrated solution service for die-casting parts, plastic injection parts and toolings.
3. Time and cost effective
4. Project management and Efficient delivery.
Quality Control
Company Profile
Company Profile:
Dongguan Sun Hua Plastic Ltd is a company specialized in the design and manufacturing of high-quality die-casting tooling and molded parts of Aluminum, Zinc, Magnesium, etc for the international market and has been dedicated to the manufacturing endeavor since its inception in 1997. The company mainly manufactures auto parts and other aluminum die-cast parts, machined parts, and products for automotive, communication, infrastructure, electrical appliances, electric tools and other industries.
Committed to providing integrated solutions for prototyping and mass production, through tooling build, trial out and First Article Inspection, Sun Hua offers the competitive price and satisfactory lead time based on advanced technologies, scientific team management and continuous improvement.
Production Floor
Company Culture
Strength:
1. We are a die caster specialized in OEM die casting parts production from model designing,prototype build, tooling build and mass production since its founding from 1997. 2. Top brand customer cooperation, such as BOSCH, TTI, and BYD etc.
3. Equipment includes CNC, EDM, grinding machine, die casting machine (from 88 ton to 2500 ton).
4. Dedicated and integrated solutions for your products with the best price.
5. Expertised Tooling Making
6. As-cast Quality Control
7. Precision CNC machining
8. Measurement Correlation
9. Production Planning and Management
10. Project Management and Scheduled Delivery
11. Providing good After-sale service, if the products have any quality problems, we will take charge of it.
Packaging & Shipping

Tooling Packaging:

1. Clean and rinse the complete tooling.

2. Interior and exterior of the tools shall be preserved with oil.

3. Wrap the tooling with film for protection after dry out.

4. Stuff the tools in the wood crate.

International shipment:
1. FedEx Express
2. TNT Delivery
3. DHL Express
4. EMS delivery
5. UPS Express delivery
6. Maritime container delivery.

Certifications
Customer Awards:
ISO& IATF Certificates:
Customer Visiting:
Strength: 1. We are a die caster specialized in OEM die casting parts production from model designing,prototype build, tooling build and mass production
since its founding from 1997. 2. Top brand customer cooperation, such as BOSCH, TTI, and BYD etc.
3. Equipment includes CNC, EDM, grinding machine, die casting machine (from 88 ton to 2500 ton).
4. Dedicated and integrated solutions for your products with the best price.
Expertised Tooling Making 6. As-cast Quality Control 7. Precision CNC machining 8. Measurement Correlation 9. Production Planning and Management 10. Project Management and Scheduled Delivery 11. Providing good after-sale service, if the products have any quality issues.
2023 NHS Exhibition at Las Vegas
2023 China - Russia Expo at Ekaterinburg
FAQ: Q: What do I need for offering a quote?
A: Please offer us 2D or 3D drawings (with material, dimension, tolerance, surface treatment and another technical requirement, etc.), quantity, application, or samples. Then we will quote the best price within 24h.
Q: What is your MOQ?
A: MOQ depends on our client's needs, besides, we welcome trial orders before mass production.
Q: What is the production cycle?
A: It varies a lot depending on product dimension, technical requirements, and quantity. We always try to meet customers' requirements by adjusting our workshop schedule.
Q: What kind of payment terms do you accept?
A.: T/T, PayPal.
Q: Is it possible to know how is my product going on without visiting your company?
A: We will submit a detailed production schedule and send weekly reports with digital pictures and videos to present the manufacturing progress.
Q: If you make poor quality goods, will you refund our deposit?
A: We make products according to the drawings or sample required criteria. All parts will undergo the in-process and outgoing quality inspection prior to the shipment. To meet the customers' satifaction is the grand pride we hold for the business.
For more questions, please kindly send us an inquiry!
