Universal Material Testing Machine with Plastic Materials

Product Description

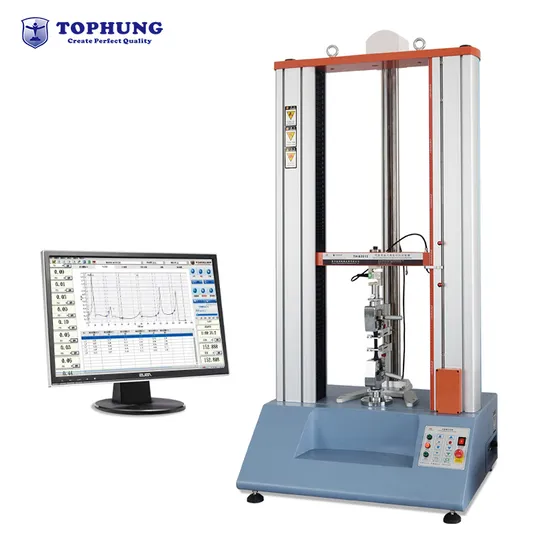

TH-8201 Series of Universl Material Testing Machine 01 Main frame:Non welded aluminum alloy cover,long service life 02 Deformation extensometer:Test for tensile deformation 03 Crossbeam:Movable crossbeam 04 Limit switch:Manually adjustable travel limit 05 Load cells:High precision load cells imported from USA 06 Fixture:Fixed sample to ensure testing accuracy 07 Host base:Waterproof and oil resistant, stable and durable 08 Operation panel:Simple and easy to operate 09 Adjusting screw:Adjust the screws to adjust the levelness of testing machine
Product DescriptionTH-8201 series universal testing machines are designed and manufacture according to ASTM, ISO, DIN, GB and other international standards.Test item:Mainly used for testing non-metallic polymer materials, solar photovoltaic modules and other samples of tensile, compression, bending resistance, shear, peel, tear, welding strength and other mechanical tests.Applicable industry:It is widely used in engineering platics, solar photovoltaic, wire and cable,automotive parts, electronic products, packing materies and other industries, universites, research laboratories, inspection arbitration, technical supervision and other departments.

Model	Th-8201S	Th-8201A	Th-8201
Name	Servo Computerized Universal Material Testing Machine	Computer type Universal Testing Machine	Electronic type Universal Testing Machine
Capacity	100N,200N,500N,1000N,2000N,5000N,10000N,20000N( optional)
Display Mode	Computer software display or(LCD display+ computer display)		LCD display
Power system	Imported servo motor+ servo drive	servo motor+ servo drive	servo motor+ servo drive
Accuracy grade	Better than 0.5 level	Better than 0.5 level	Better than 1.0 level
Load range	0.2%-100%FS	0.2%-100%FS	0.5%-100%FS
Force error	Within±0.5%	Within±0.5%	Within±1.0%
Force resolution	1/±500000	1/±500000	1/±200000
Deformation ranger	0.2%-100%FS	0.2%-100%FS	0.2%-100%FS
Deformation error	Within±0.5%	Within±0.5%	Within±1.0%
Deformation resolution	0.0001mm	0.001mm	0.001mm
Displacement error	Within±0.5%	Within±0.5%	Within±1.0%
Displacement resolution	0.0005mm	0.001mm	0.001mm
Force control rate adjustment range	0.1%-10%FS/S
Force control rate accuracy	Within±1.0%
Deformation rate adjustment range	0.02%-5%FS/S
Deformation rate control accuracy	Within±1.0%
Displacement speed range	0.001-500mm/min	1.0-500mm/min	1.0-500mm/min
Effective test width	450mm
Effective space	1000mm
Dimension	850*650*1650mm
Power	Single-phase220V 1.0KW
Weight	300kg

Component Introduction
Servo motor High precision: realized closed-loop control of position, speed, and torque; Fast speed: good operation performance, rated speed can reach 2000~3000 revolutions; Adaptability: strong overload resistance,can withstand three times the rated torque load.Load cells High precision: high measurement accuracy;
High stability: stable and durable;
Accuracy level: better than 0.5 level accuracy.Ball screw Smooth movement: low frictional resistance during operation, high sensitivity, no shaking when starting, no crawling phenomenon at low speeds; High transmission efficiency: the transmission efficiency is as high as 90%-98%, which is 2-4 times of the traditional system; Adaptability:strong overload resistance,able to withstand loads three times the rated torque.Software Introduction

Main interface:TOP-Test material test special software,it is suitable for all kinds of materials, products mechanical properties test. The main interface of the test simultaneously displays: test curve, data list, real-time data, control panel and other information. Simple interface, portable operation, and support for multi-language seamless switching.

Standard Setting interface:TOP-Test material test special software, according to the product test standards, can be set before the test sample information, the test process control mode, running speed, control conditions, and test results of the data list, data arithmetic, test report style and other information, To meet the test requirements of ISO, IEC, EN, GB, ASTM, JIS, DIN and other international general testing standards.

Calibration interface:TOP-Test material test specific software, with force, displacement, velocity, deformation and other equipment calibration functions. Force calibration can simultaneously store multiple sets of calibration data for load cells, and can calibrate up to 12 segments of load cells. The force error is controlled within ± 0.5%, making the test results more accurate.

Unit system interface:TOP-Test material test special software, with flexible unit system, strength, displacement, deformation, strength and other data are available in a variety of units to meet different testing requirements.

Data query:TOP-Test material test special software, with powerful data query function, each test data are stored in the encrypted database, users can query and output historical tests based on search criteria such as test number, batch, time, and personnel, and compare and analyze the test results horizontally/vertically.

Report output:TOP-Test material test specific software, it adopts open test report template, users can write test report styles according to test requirements, call test result database information, and automatically generate test reports. And it can output test reports in formats such as Word, Excel, PDF, etc. The data information is complete, clear, and automatically generated.

Industry Applications

PLATIC MATERIALS

SOLAR PHOTOVOLTAIC

WIRE AND CABLE

ELECTRONICS

AUTO PARTS

RUBBER MATERIAL

METALWARE

ADHESIVE TAPE

Tensile test

Metal compression test

Three point bending test

Four point bending test

Adhesive peel test

Tear test

Terminal tensile test

Webbing tensile test

CertificationsTophung Company takes the development of national scientific and technological infrastructure as its responsibility, focusing on the research and development and production of scientific instruments and equipment. At present, Tophung has 32 authorized patents and has also obtained ISO quality management system certification and EU CE certification. The main series of testing machines produced by Tophung have obtained national patents and all have independent intellectual property rights.
