Cnrm Intelligent Twisted Polypropylene Rope Machine 3 Strand PP Yarn Rope Machine

Product Description

CNRM Intelligent Twisted Polypropylene Rope Machine 3 Strand PP Yarn Rope Machine
Product Description-Polypropylene Rope Machine Customer Satisfaction Index: 100% (Our machines in Korea and Algeria customer factory)
Our Polypropylene rope machine can make 3-strand or 4-strand twisted ropes in different materials, such as PP, PE, nylon, cotton, and so on. The rope ranges from 3mm to 32mm. twisted rope machine is very popular in Africa, the Middle East, South America, and Southeast Asia, such as Kenya, Algeria, Sudan, Egypt, Mexico, Vietnam, and so on. We have helped many customers in these areas set up their own plastic rope or fishing net-making factory. Model of Twisted Rope Machine

Item	HDTM-M33	HDTM-M44	HDTM-M55	HDTM-M66	HDTM-M77
Rope Range	3-10mm	6-14mm	12-22mm	18-26mm	22-32mm
Lay Range	15-38mm	20-50mm	32-78mm	40-105	45-130
Power	5.5kw	7.5kw	11kw	18.5kw	20kw
Take-up capacity	Φ130*Φ500*Φ320	Φ130*Φ600*Φ400	Φ130*Φ600*Φ400	Φ140*Φ700*Φ450	Φ200*Φ550*Φ650
Size of pay-off bobbin	175*300mm(8)	175*300mm(8)	175*300mm(8)	175*300mm(8)	175*300mm(8)
Qty of 8" bobbin	8*3 or 8*4	24*3 or 24*4	32*3 or 32*4	46*3 or 46*4	64*3 or 64*4
Machine weigth	3200kg	5300kg	7200kg	10000kg	13000kg

Key Features -Power transmission by timing belts.
-Auto stop after yarn breakage to control wastage.
-Digital length counter meter.
-Door Sensor.
-A.C. frequency drive.
-Direct coiling head. No need packing again.
Detailed Images-Polypropylene Rope Machine
Special Treatment of CNRM PP Rope Machine for twisting rope -for rope cradle and strand cradle, make the coating fullness and uniform, has good wear resistance and corrosion resistance
-Galvanization treatment for rope roller and flyer arm, make color zinc plated, the work piece anti-rust and beautiful.
Complete Line For Plastic PP PE Rope
We can supply a complete production line for manufacturing various PP ropes and twine, including a monofilament extrusion line, yarn twisting machine, pp rope machine, and packing machine.
About-CNRM
Our Service

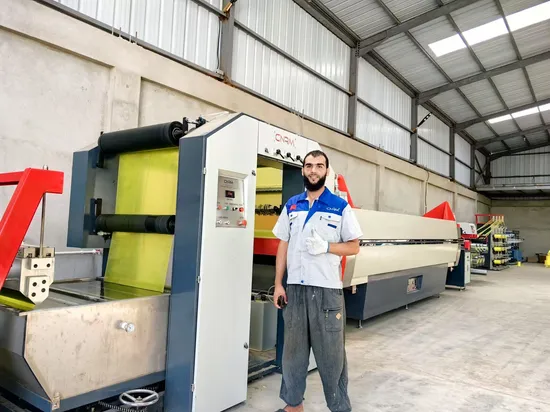

These 4 strand yarn rope machine pictures are taken from our customer factory during machine installation. We got very good feedback from them. Customer satisfaction is our greatest happiness
Packing & Delivery
The CNRM 3 Strand PP plastic rope making machine requires one 40FT container, and the machine will be securely fixed inside the container.
FAQ
Q: Do you have after-service? A: We have a reliable after-sales team that can send engineers to your factory to install the machine and train your staff on using it skillfully.
Q: What is the material you use? A: We use a new strong material at the main axis, which is important for stability, use time, smooth running, and making the product more attractive. Good-quality motors and electrical parts guarantee the machine's use time and running. We can change the motor brand as you need.
Q: Does one machine can make all size ropes? A: No, each model yarn rope machine has its working range. For example, the M33 rope machine is suitable for making 3-10mm ropes, while the M44 can make 6-14mm ropes, the M55 is for 12-20mm ropes, the M66 for 18-26mm, and the M77 for 22-32mm ropes. Please let me know what size rope you want to make, and I will provide the best suggestions.
Q: How long is the delivery time? Can i see your machine videos? What is the payment item? Welcome to contact us to get latest catalogue and price!
