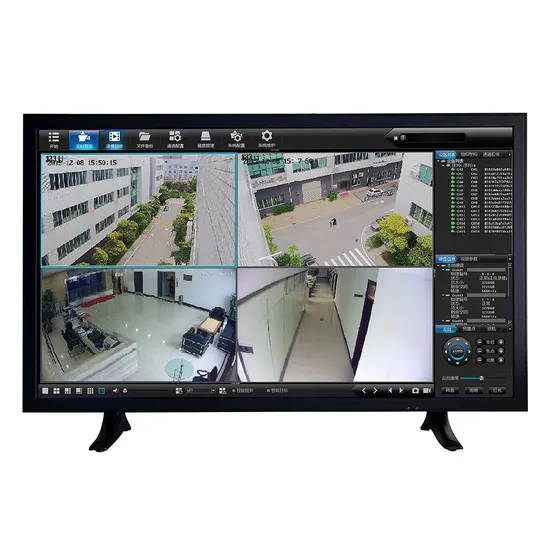

32 Inch LCD Module Screen Industrial CCTV Tester 4K Monitor BNC AV HDMI Mini LED Display for Security Cameras System

Product Description

LED Monitor Features:
1. HD: 3840*2160, 4 times higher than normal monitor.
2. Screen automatically detects and displays the resolution of the input signal.
3. Clear: delicate and realistic, conveying true colors, showing the true colors.
4. Bright: The quality is improved, only for better presentation.
5. Adopt industrial screen, high brightness, high contrast.
6. High-precision standard regulated power supply, specially designed for industrial equipment, supporting 24 hours × 365 days of uninterrupted work.
7. It adopts full metal casing, strong structure, fireproof, moisture proof and shockproof, especially suitable for equipment that is susceptible to electromagnetic interference.
8. Adopt 10bit image chip processing technology, high pixel progressive scan, excellent texture.
9. Support intelligent 3D noise reduction, eliminate afterimage function, dynamic brightness, contrast color optimization technology.
10. Apply the world's leading LED driver solution to accurately restore the front-end signal, with a strong sense of reality.
11. LED has small volume, low energy consumption, zero radiation, stable image, no impact on the eyes, natural health.
12. 5 ms extremely fast response, avoiding the tailing phenomenon of images in high speed operation.
13. Using nanotechnology, the picture is more three-dimensional, transparent.
14. This machine also comes with a splicing function, no external splicer.

Model NO.	HC-LED32A-4K
Monitor Panel
Type	Professional CCTV Monitor
Resolution	3840*2160
Screen Size	32"
Screen Style	TFT Led
Sceen Ratio	16:9
Brightness	500nit
Contrast Ratio	10000:1
Response Time	5 ms
Display Area	699.3*396.4mm
View Angle	170°
Display Color	16.7M
Control Method	Panel Infrared
Monitor Interface
Input Port	HDMI*1 + VGA*1+USB*1+DVI*1+RS232*1+BNC*2
Output Port	AV*1+RS232*2+ CVBS*2
System	PAL, NTSC,SECAM
OSD Language	Multi Language including Chinese, English, French, Spanish, Italian, Russian, Japanese and so on
Audio	HDMI Support
Power Supply
Power Input	180~240V/0.7A
Power Frequency	50Hz
Total Power	50W
General
Led Casing	Professional Fireproof Iron Metal Casing
Outer Dimension	741.3*436.4mm(Exclude foot height)
Foot Height	25mm
Installation Mode	Desktop/Hoisting/Wall Mount (with 4 * Hexagonal Column Screw)
Remote Controller	Yes
Working Temperature	-5°C - 50°C (20°C is the best)
Working Humidity	10%-90% RH
Storage Temperature	-20°C - 60°C
Monitor Brand	HICOTEK/Neutral/OEM Optional
Package Size	850*600*190mm
Net Weight	6.8 Kgs
Gross Weight	10 Kgs
Carton Size	2PCS/CTN,850*600*380mm
Carton Weight	20 kgs
