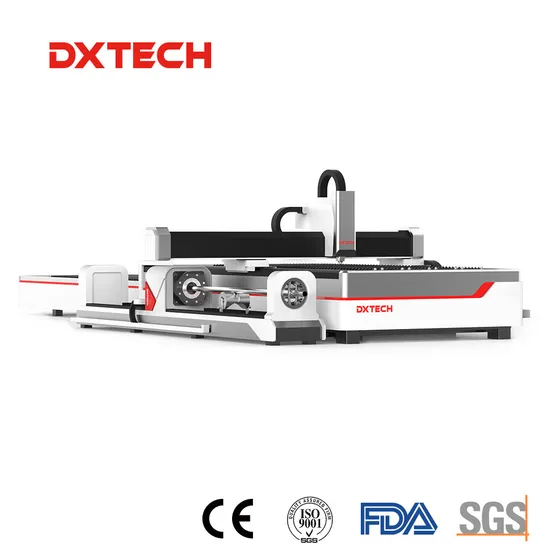

Manufacturing 1000 W Sheet and Tube Metal Fiber Laser Exchange Platform Cutting Machine for Carbon Steel Stainless Steel Aluminum Brass

Product Description

Product Description
Short brief:
This exchange table sheet and tube laser cutting machine can process both metal sheets and tubes. And this type of laser cutting machine is the most economical choices for users with many functions. With the exchange platform adopted, the processing efficiency is greatly improved and users don't need to wait.
Technical parameter:

Working Area 6000*2000mm(optional) Laser Output Power 1000W/2000W/3000W/4000w( optional ) X/Y-axis positioning accuracy ±0.03mm X/Y-axis repositioning accuracy ±0.02mm Max Cutting Speed 25m/min Maximum acceleration 1.5G Servo motor Japan Yaskawa / Japan Fuji Electrical components Schneider Reducer Japan SHIMPO

Cutting materials and thickness:

Carbon steel 0.4-6mm 0.4-10mm 0.4-12mm 0.4-14mm 0.4-16mm 0.4-20mm Stainless steel 0.4-3mm 0.4-4mm 0.4-5mm 0.4-6mm 0.4-8mm 0.4-10mm Aluminum 0.4-2mm 0.4-3mm 0.4-3mm 0.4-4mm 0.4-6mm 0.4-8mm Brass 0.4-3mm 0.4-3mm 0.4-3mm 0.4-8mm Laser power 500w 750w 1000w 1500w 2000w 3000w

Detailed Images
The Tube Welded Bed
High strength, not easily deformed The following features ensure that the bed will not be deformed for 20 years like high strength, good stability and strong tensile strength. More stable The rectangular tube has a wall thickness of 10 mm and the entire body weighs 4,500 kg
Aviation Aluminum Gantry
--High hardness Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.
--High speed Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.
Raytools
Optimized optical configuration and smooth and efficient airflow design;
Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;
A variety of fiber interfaces for adapting to a variety of fiber lasers;
The collimating mirror, focusing mirror and nozzle have a cooling structure.
Application
--Materials. Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.
--Various industry. The fiber laser cutting machine is widely used in automative industry, advertising industry, kitchenware industry, sheet metal industry, cabinet industry, fitness industry etc. Professional in many manufacturing and processing industries like sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal processing, kitchen processing and other industries.
Packing & Delivery
Packaging Improving:
Three layers--- -The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly. If you need a wooden box, we will make fumigation free wooden package outside the machine.
Our Company
Jinan DXTECH cnc machinery company is professional in design and manufacturing of fiber laser cutting and engraving machine, co2 laser cutting and engraving machine, and fiber or co2 laser marking machine from Jinan city of China. We have always been devoting to the research and manufacture of Laser CNC cutting and engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking industry, model industry, electric, CAD/CAM industry model, clothing industry, package printing and marking industry, laser sealing, automative industry, advertising industry, kitchenware industry, sheet metal industry, cabinet industry, fitness industry etc.
