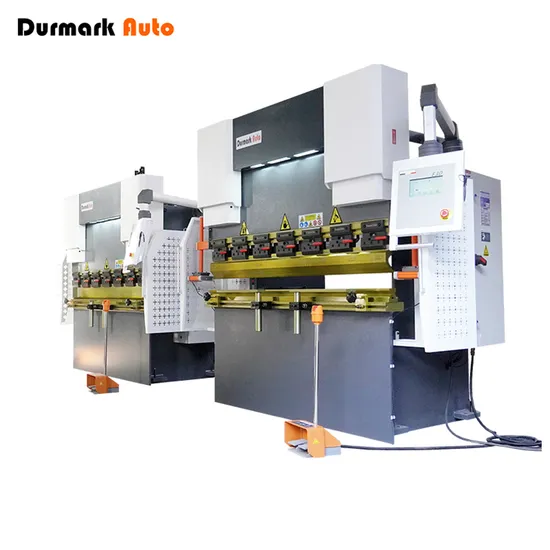

Wc67K-100t/3200 CNC Hydraulic Bending Machine Hydraulic Sheet Metal Folding Machine

Product Description

WC67K-100T/3200 CNC hydraulic bending machine Hydraulic Sheet Metal Folding Machine
Feature
1. The frame is steel structure, left and right vertical plate, table and pressure plate welded into a unitary structure, after welding to eliminate internal stress by tempering, exceptional rigidity, high stability.2. Important parts of the frame, sliders, etc. are used ANSYS finite element analysis software to ensure machine reliability.
3. Hydraulic drive, cylinder on both end of machine, disposed on the slider to drive it work directly.
4. Torsion axis synchronization for slide synchronous mechanism.
5. Adopt a mechanical stopper mechanism, stable and reliable.
6. Back Gauge size and slide stroke controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.
7. The CNC system adopts frequency conversion control technology, with multi-step
programming function, simple and easy to operate.
8. Inclined wedge deflection on the compensation mechanism, in order to guarantee access to high bending accuracy
9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working.
Technical parameter

NO	Item	Value	Unit
1	Nominal force	1000	kn
2	Worktable length	3200	mm
3	Worktable height	850	mm
4	Slider stroke	100	mm
5	Max opening height	320	mm
6	Slider stroke adjustment	75	mm
7	Distance between columns	2600	mm
8	Throat depth	320	mm
9	Slider working speed Slider return speed Slider unloading speed	9 45 50	mm/s
10	Main motor	7.5	kw
11	Dimension	3200*1600*2450
