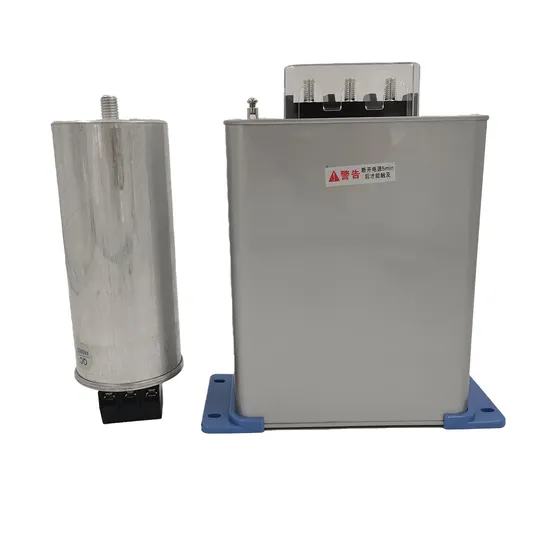

0.45-7.5-3 Power Factor Capacitor Bank
| US$80.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
self healing capacitor19
Packaging Type
Wooden Box
Capacitance
1-100kvar
Structure
Fixed Capacitor
Manufacturing Material
Polypropylene
Usage
Power Factor Correction
Tuning
Polystyrene Capacitor
Rated Voltage
250VAC/400VAC/525VAC/690VAC
Rated Capacity
1-100kvar
Tolerance
-5+- 10%
Dissipation Factor
Tg<=0.1%
Maximum Allowable Overvoltage
1.1 Times Rated Voltage
Maximum Allowable Overcurrent
1.30times Rated Current
Standard
Gno2747-2004,IEC60831-1996
Material
Metallized Polypropylene Film
Color
Grey
Description
Shelf-Heating Low Voltage Shunt Capacitors
Transport Package
Wooden Box
Specification
187*40*235mm
Trademark
Huakun
Origin
Shanghai, China
HS Code
85321000
Production Capacity
100000PCS/Year
Packaging & Delivery
Package Size
17.00cm * 20.00cm * 10.00cm
Package Gross Weight
5.000kg
Product Description
Product DescriptionThe self-healing low-voltage shunt capacitor is suitable for power system frequency of 50Hz or 60Hz.It is mainly used to improve power factor ,reduce reactive power loss,improve voltage quality,excavate transformer capacity,etc.It is the best power-saving product recommended by the state.
After the capacitor is cut off from the power supply, it must be ensured that the residual voltage of the capacitor is reducedto 10% of the rated voltage before it can be put into operation again.Normally, this time will take about 200s, so the controllerwith the function of re putting locking time after the capacitor is cut off shall be selected.If a general controller is used,a separate quick discharge facility shall be installed.This limit is not applicable to the equipotential switch.The altitude shall not exceed 2000m.The ambient temperature category is - 25 / ºCC , the minimum temperature is - 25 ºC , the maximum temperature is class C,(the maximum temperature is not more than 50 ºC , the average temperature within 24 hours is not more than 40 ºC , andthe average temperature within one year is not more than 30 ºCC ).The capacitor shall be guaranteed to work under goodventilation conditions, and it is not allowed to work under airtight and airtight environment.
