Automatic 400PCS/Min Jwc Transparent Film for Machine Auto Baby Diaper Machinery Line
| US$500,000.00-600,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JWC-NK450
Product Object
Baby
Designed Speed
500PCS/Min
Production Speed
400PCS/Min
Computer Control Panel
Yes
Product Specification
S, M, L, XL
Automatic Grade
Automatic
Certification
CE, ISO
Condition
New
Diaper Machine Color
Ivory White
Machine Direction
to Be Defined
Machine Power Source
380V/50Hz
Process
Baby Diaper Machine
Usage
98%
Type
Baby Diaper Machine
Processing Technology
Laminated Machine
Effciency
90%
After-Sales Service Provided
Video Technical Support
Service Provided
Field Maintenance and Repair Service
Transport Package
Transparent Film for Baby Diaper Machine
Specification
S, M, L, XL
Trademark
JWC
Origin
China
HS Code
84418090
Production Capacity
30 Sets
Product Description
JWC-NK450 Full Auto 85% Efficiency 0.6Mpa Air Pressure Baby Diapers Production LineProduct Description

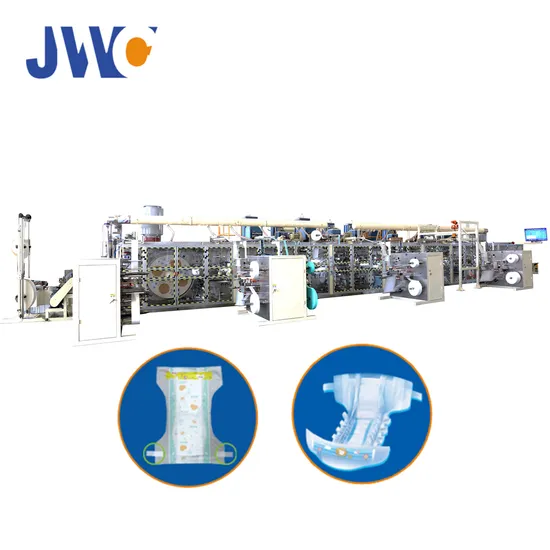

This JWC-NK450 Semi-Servo Full Auto Baby Diaper Making Machine includes main machine, glue applicators, packing system and other accessory equipment including air compressor, vision detection system and metal detection machine etc. This JWC-NK450 Semi-Servo Full Auto Baby Diaper Making Machine can produce 3-5 sizes diapers according to the order. This production line can realize 100%full automatic control.
| 1.This baby diapers production line equipment I shape full automatic baby nappy making machine frame structure has reasonably solid square steel frame 2. Crusher system 3. Fluff forming system 4. SAP feeding system 5. Bottom tissue feeding, roll diameter φ800mm 6. Upper tissue, roll diameter φ800mm 7. Fluff core wrapped by upper and bottom tissue, also can be wrapped by one whole piece tissue 8. ADL feeding, roll diameter φ800mm 9. Fluff core inner cut device 1 set,adopt frame type structure, increase the cutter life 10. Leak cuff unit 11. Hydrophilic nonwoven supply, roll diameterφ800mm 12. 12. Side tape supply: 13. Three pieces complex, two sides fixing unit, adhesion pressing | 14. Bottom film supply 15. Frontal tape supply: 16. Elastic waistband supply 17. surface layer, absorption core, bottom film pressing 18. product arc shape die cut 19. pressing unit(Y shape roller) 20. product vertical tri-fold 21. pressing unit(Y shape roller) 22. transmission unit 23 . final cut unit 23. horizontal fold transmission unit 24. horizontal fold unit 25. product transmission unit 26. auto rejection exit(pneumatic) |
| 1 | Design speed | 500pcs/min |
| 2 | Stable working speed | 400pcs/min |
| 3 | Qualified rate | 97% exclude the wastage due to the glue applicators and materials splicing joint |
| 4 | Efficiency | 85% |
| 5 | installation capacity | 200KW |
| 7 | Electricity | 380V 5%50HZ |
| 8 | Wire | Three phases four wires 380V/50Hz (ground wire) |
| 9 | Air pressure | 0.6Mpa |
| 10 | Total weight | About 50tons |
| 11 | Machine size | 38*8*4.5 M(L*W*H) |
| 12 | Working space | 42*11*6 M (L*W*H) |
| 13 | Machine color | Rice white ,can be changed by order |
| 14 | Product size | 3sizes |
| 15 | Containers | 6X40HQ |
| Auto lubricating System Auto lubricating for the cutter units ,can make the machine have better cutting effect and extend the life of cutter system | Human-Machine Interface Working speed(piece/min), single producing output, monthly output,annual output, counting quantity and products' passing rate can show on the screen | Materials automatic feeding System Main raw materials adopt auto unwinding, auto splicing, tension control, auto FIFE web guider functions to guarantee the precise and stablility |
| Name | Brand | Origin | |
| 1 | Servo motor | Mitsubishi | Japan |
| 2 | Auto web guider | LECO | China |
| 3 | Touchable screen | Banner | USA |
| 4 | PLC controlling system | Mitsubishi | Japan |
| 5 | Sensor | Banner | USA |
| 6 | Safety production | Shneider | France |
| 8 | Cutter raw material | D2 | USA |
| 9 | Gear according to usage | BEM/NSK/SKF | Germany/Japan/Sweden |
| 10 | Timing belt | Optibelt or Gates | Germany/USA |
| 11 | Low voltage electronic | Shneider | France |
| 13 | Temperature controlling system | Omron | Japan |
| 15 | Pressure regulating valve | Airtac | Chinese Taiwan |
| 16 | Pneumatic element | Airtac | Chinese Taiwan |
| 17 | Solenoid valve | Airtac | Chinese Taiwan |
| 18 | Moisture separator | Airtac | Chinese Taiwan |
| 19 | Automatic fault alarm | Mitsubishi | Japan |
Final products&raw materials
