China High Speed Plastic Inject/Injection Mould/Moulding Machine 190ton

Product Description

Specification of high speed D-RI190 plastic injection moulding machine
2. Technical data of D-RI190

SPECIFICATION	CN	D-RI 190
INJECTION UNIT
SCREW DIAMETER	mm	42
SCREW L/D RATIO	L/D	22
SHOT VOLUME(THEORETICAL)	CM³	277
INJECTION WEIGHT	G	252
INJECTION RATE	g/s	120
INJECTION PRESSURE	Mpa	192
SCREW SPEED	Rpm	190
CLAMPING UNIT
CLAMPING FORCE	KN	1900
OPEN STROKE	mm	410
SPACE BETWEEN TIE-BARS	mm	460×460
MAX.MOULD HEIGHT	mm	500
MIN.MOULD HEIGHT	mm	180
EJECTOR STROKE	mm	135
EJECTOR FORCE	KN	50
OTHERS
MAX.PUMP PRESSURE	Mpa	16
PUMP MOTOR POWER	KW	29
HEATING POWRE	KW	15.5
MACHINE DIMENSIONS(L×W×H)	M	5.5×1.3×2.1
OIL TANK CUBAGE	L	320
MACHINE WEIGHT(APPROXIMATE)	T	7

3. Spare parts of D-RI 190

NO.	Name	Brand	Origin
1	Computer	KEBA	Austria
2	Contactor	Schneider	France
3	Circuit-Breaker	Schneider	France
4	Travel switch	Omron	Japan
5	Proximity switch	Omron	Japan
6	Solenoid directional valve	Rexroth	Germany
7	Oil motor	PKL	Sino Italian joint venture
8	Oil pump	Sumitomo	Japan
9	motor of mould adjustment	Eton	Sino US joint venture
10	Servo Motor	Hilectro	China
11	Servo Drivers	Hilectro	China
12	Pressure Sensor	Gefran/NOVO	Italian/ Germany
13	Stroke control electronic ruler	Gefran	Italian/Joint Venture
14	Self-lubrication System	Sanlang	Japan
15	Screw barrel	38CrMo qAI	Joint Venture
16	Heating Ring	Shangwanling	China
17	Sealing Element	Hallite	England

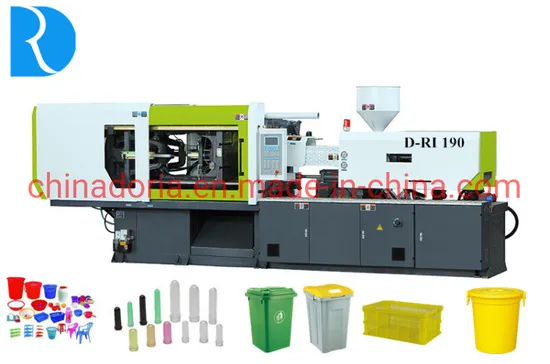

4. Pictures of machine
5. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us, we hope we will have good chance to cooperate!
6. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
7. Contact us:
