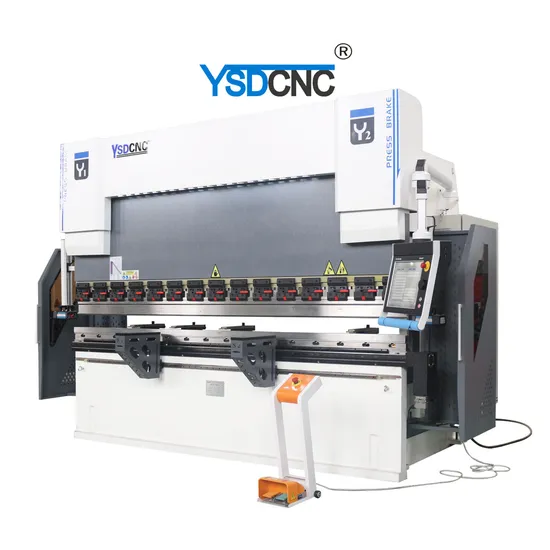

100t 200t 160t 400t Da41t Controller 4+1 Axis Metal Steel Manual Auto CNC Nc Hydraulic Sheet Bender Section Bending Mechanical Plate Metal Ss Press Brake

Product Description

Features YSDCNC EUROG-ENIUS Series press brake features an CNC crowning system for improved quality, a servo driven
back gauge system for increased speeds, and 3D capable graphical control unit to simulate bending sequences and
collision points.Also has increased working speeds, stroke, daylight, and pressing capacities of GENIUS Series machines. The future - as a result of rising energy costs and increasingly cost efficient speed-controlled drives offered on the market, variable-speed solutions are on the advance. The foundation of every YSDCNC press brake is a solid, mono-block frame made from mill certified, high-yield steel. As a result our press brakes perform accurately and reliably year after year. We're so confident in our frames that we offer a 10-year warranty with our standard machines. Dual hydraulic cylinders located on either side of the ram provide faster approach speeds. The cylinders are synchronized to provide smooth motion resulting in precise ram positions to accuracies of .0004" YSDCNC made press brakes can easily accommodate parts with deep bends and that require long tooling because of our open space
design. Our machines typically have deeper throat depths, larger daylight spaces and longer stroke lengths than any manufacturer
in the market. We've also mounted the RAM GUIDING on the outside of the frame to maximize the distance between the side frames
allowing our brakes to accommodate deep part flanges. Manual and CNC crowning ensures a constant bend angle across the full length of the machine.This is achieved by pre loading the
machine, to offset any possible deflection under load or compensate for any tool wear, so that under load contacting surfaces are
parallel to each other. With CNC crowning systems the press brake control is preprogrammed with machine characteristics and
deflection data. With manual crowning a simple spread sheet or chart can be easily developed for each application. The correct back gauge for the application can have a substantial positive influence on production part volume and accuracy. The more intricate the parts, typically the more axes on the back gaugeyou should have. Volume of parts needs to be considered also. A
smart, experienced brake press operator can bend, form and produce some very intricate parts without even a single axis back gauge. However, the more time it takes to form the correct part, the more costs you have in the part. So the best scenario would
be to have an experienced operator with the correct back gauge system that will magnify their skills. But in today's market,smart,experienced Press Brake operators are getting hard to find. So the correct back gauge for the application will decrease costs per part by helping to make a good press operator, a great one. The less experience an operator is the more axes you should have. Also, experienced operators know the benefit of correct back gauge for applications. YSDCNC is here to consult with you on your application requirements. MECHANICAL STRUCTURE The main mechanical structure of the press brake consists of the frame. column,ram,worktable, the main cylinder and backgauge.
The main components are through finite element analysis and optimized design by 3D software to fully guarantee the structural
strength and rigidity of each component. Laser Protection The DSP laser protection with 3 modes comprehensively protects the personal safety of the operators and maintains the high level of the productivity of the YSDCNC press brake. Special punch and die WILA Hydraulic Clamping System WILA has focused on the R&D of the hydraulic clamping systems and supporting tools of press brake machine for many years, and its quality and service are trustworthy. Safety Light Curtain The light curtain, YSDCNC chooses is from the well-known brands, with perfect performance to offer a highly effective solution for both operator safety and machine productivity. Sheet Follower The YSDCNC press brake with sheet follower for bending long and thin sheets. It places on the front of the press brake at the height of the bending line. Robotic Arm Press brakes abound, virtually every metal fabrication shop has one or more, but brakes still remain one of the most labor intensive machine tools in the fabrication process. Every fabricator understands the benefits achieved by running a press brake "lights out" 24/7 at top speeds, which can only be accomplished with automation and robots. Browse our offering of advanced Robotic Bending Automation technology that may be the answer to the efficiency improvements you're looking for.

Serial No.	Name	Standard No.	Material	Size	Quantity (piece)	Part
1	O-type seal ring	GB-1235-76	Rubber-1-4	10×1.9	1	Hydraulic system
2	O-type seal ring	GB-1235-76	Rubber-1-4	11×1.9	7	Hydraulic system
3	O-type seal ring	GB-1235-76	Rubber-1-4	20×2.4	1	Hydraulic system
4	O-type seal ring	GB-1235-76	Rubber-1-4	24×2.4	8	Hydraulic system
5	O-type seal ring	GB-1235-76	Rubber-1-4	35×3.1	1	Hydraulic system
6	O-type seal ring	GB-1235-76	Rubber-1-4	40×3.1	5	Hydraulic system
7	O-type seal ring	GB-1235-76	Rubber-1-4	60×3.1	1	Hydraulic system
8	Combined washer	JB982-77		14	5	Hydraulic system
9	Combined washer	JB982-77		16	2	Hydraulic system
10	Combined washer	JB982-77		18	2	Hydraulic system
11	Combined washer	JB982-77		22	2	Hydraulic system
12	Combined washer	JB982-77		27	4	Hydraulic system
13	Combined washer	JB982-77		33	2	Hydraulic system
14	Combined washer	JB982-77		42	3	Hydraulic system

System control	Delem 53/Delem 58/Delem 66/Delem69/CT8/CT12
Main motor	Siemens motor/servo motor/jiangsu
Electric components	France/Chint
Main hydraulic valve	REXROTH/Germany/jiangsu/zhejiang
Hydraulic pump	SUNNY/USA/jiangsu/zhejiang
Linear encoder	/Italy/jiangsu/zhejiang
Foot switch	KACON/South Korea/jiangsu/zhejiang
Tubing connector	EMB/Germany/jiangsu/zhejiang
Ball screw and linear guide	HIWIN/Taiwan/jiangsu/zhejiang
Servo motor and driver	YASKAWA/Japan/jiangsu/zhejiang
Seal rings	NOK/Japan/jiangsu/zhejiang
Quick clamp	YSDCNC/jiangsu/zhejiang
CNC Punch and die	YSDCNCStandard Punch and 4V die or 2V die

Model			63T/2500	110T/3200	100T/4000	125T/3200	125T/4000	160T/3200	160T/4000	250T/3200
Bending Length	mm	2500	3200	4000	3200	4000	3200	4000	3200
Bending Capacity	KN	630	1100	1100	1250	1250	1600	1600	2500
Column Distance	mm	2060	2700	3300	2700	3300	2700	3300	2700
Gap	mm	370	400	400	400	400	400	400	400
Daylight Opening	mm	350	400	400	400	400	400	400	400
Stroke	mm	200	200	200	200	200	200	200	200
Table Height	mm	880	880	880	880	880	880	880	880
Table Width	mm	150	200	200	200	200	200	200	200
Fast Approach Speed	mm/s	200	200	200	200	200	200	200	200
Max. Bending Speed	mm/s	10	10	10	10	10	10	10	10
Return Speed	mm/s	160	160	160	160	160	140	140	140
Motor Power	KW	5.5	7.5	7.5	11	11	11	11	15
Length	mm	2825	3500	4500	3500	4500	3500	4500	3500
Width	mm	1650	1650	1650	1650	1650	1650	1650	1730
Height	mm	2430	2540	2540	2540	2540	2580	2580	2580
Weight	kg	5600	8000	950	8500	90000	10000	12000	15000

1:The machine provides 36-month warranty and free online support and service from engineers. 2: Provide online technical support and service for life, even after the warranty period, the engineer team can always
provide you with online service at no additional cost. (All our clients have this service, we think it is very necessary)
3: During the warranty period, we can send you spare parts for free replacement.
4: After the machine is completed, free whatsapp online inspection service will be provided.Bend the product according
to your requirements, then test it.
5: Pack and record the video, and submit it to you for acceptance service, or you can directly watch online on whatsapp.
6: We can also provide the following information, and it is very necessary.photo of the rating plate you apply on the
machine itself-basic manual for the machine in English. We are a 7-year member of ******, and we support third-party guarantee transactions of ****** credit insurance
transactions, which can better protect your financial security. The company provides a variety of transaction methods: EXW, FOB, CIF, DDU, DDP and other education methods
support customs declaration, export, transportation and delivery to the door and other one-stop services. You can trade through TT, wire transfer, transfer, paypel, letter of credit, ****** credit order and other transaction methods. We can deliver to your forwarding warehouse, or directly to your door, and deliver the goods to your hands.We cooperate
with well-known international shipping companies such as COSCO Shipping, and we can also be responsible for the
customs clearance of your goods, delivery of goods to your door, etc.And we provide free shipping insurance. If there is
any damage during transportation, our insurance company will settle the claim for you, and we will send you free shipping.
(If you have any questions, please contact us as soon as possible, and we will guide you how to operate? We are your
most trusted partner, we are your eyes and hands.) Nanjing Shanduan CNC Machine Tool Co., Ltd. has 38 years of industry experience. We specialize in four main product lines: air duct
production lines, CNC bending machines, shearing machines, laser cutting machines, and shredders for energy recovery. With over
300 employees, including 30 sales engineers and 35 service engineers, our factory spans 40 acres and is equipped with 3 floor-type
boring and milling machines, 6 gantry planers, 10 radial drilling machines, and 25 CNC machining centers. In total, we have over 200
large and small-scale equipment. With over 100,000 customer case experiences and product transportation to over 100 countries, we have a proven track record in serving a wide range of clients. We are dedicated to assisting you in securing orders and providing high-quality products and services. Our commitment to excellence has resulted in many satisfied customers who are eager to become our agents. FAQ Is it in stock?
Hello, we have a large amount of stock for standard models, and the regular delivery time is 0~7 days. Customized
models can be completed in 7-30 days (depending on the size and voltage of the machine, the time is different.)
How to buy?
Our company supports a variety of transaction methods, and you can deliver the goods to your door with a deposit
in advance.Various transaction methods such as payment to delivery or delivery to the factory. Consult for details: +8618851629789
How about the after-sales service?
15 minutes quick feedback mechanism. 1-to-1 technical guidance. One year warranty and lifetime service. Free
replacement of non-wearing parts during the warranty period, and lifelong online technical support provided outside
the warranty period. The factory provides spare parts, and the factory installation video provides after-sales service.
How about your quality?
Our company's products are produced according to national standards, and have passed TUV, SGS, BV, CE and other
certifications. Quality assurance, EU approval, the products sell well in more than 100 countries.
What other services do you have?
Free counter, free customs declaration, free installation training for export, free online technical guidance.
