Z3050 Multi-Functional Hydraulic Radial Drilling Machine with High Performance and High Efficiency

Product Description

Product Description
Rocker Arm Drill Product Introduction

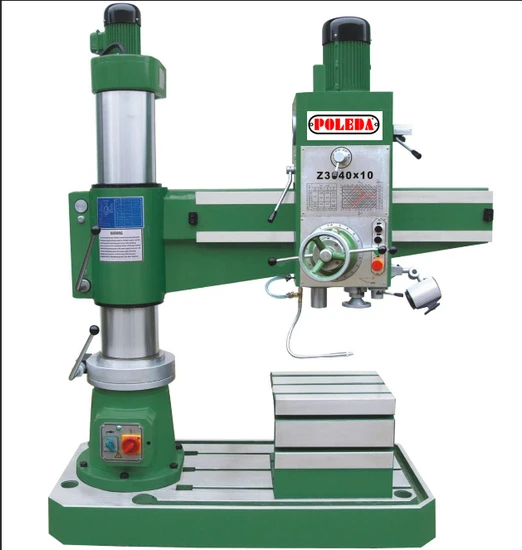

The POLEDA Radial Drilling Machine stands as an exceptional piece of hole-processing equipment, adeptly designed for various tasks such as drilling, reaming, countersinking, tapping, and face trimming. It is particularly well-suited for both single and mass production scenarios, especially when dealing with porous large parts. This machine is a ubiquitous asset in general machining workshops due to its versatility and efficiency. Key features of the radial drilling machine include:
Structural Features: The innovative design of the radial drilling machine is highlighted by its rotatable and liftable rocker arm around the column, allowing for horizontal movement of the spindle box. This thoughtful structure facilitates convenient operation, flexibility, and a broad application range, even when processing large and unwieldy workpieces with precision.
Classification: Radial drilling machines are categorized based on the tool clamping structure into hydraulic and mechanical radial drilling machines. Furthermore, the machines can be subdivided into various models and specifications to cater to distinct drilling sizes and mechanical principles, thereby fulfilling diverse processing requirements.
Technical Parameters: The performance and machining capacity of the radial drilling machine are determined by its technical parameters, which include the maximum drilling diameter, the distance from the main shaft to the column, the gap between the main shaft end face and the working table, and the spindle's rotational speed, all of which contribute to its operational efficiency.
Safety Performance: Engineered with meticulous safety features, the radial drilling machine includes a spindle cutting overload protection device, spindle travel limit switch, and a lifting screw safety nut, ensuring safe and secure operation at all times.
Application: This versatile radial drilling machine finds extensive applications across various machining departments. It is not limited to tasks like drilling and reaming but also excels in countersinking, tapping, and boring, making it an indispensable component of any machining and production setup.
Operation and Maintenance: The radial drilling machine can be operated manually or through numerical control, with its transmission modes comprising both mechanical and hydraulic options. Achieving optimum performance and longevity hinges on proper operation and regular maintenance.
In Summary, the radial drilling machine epitomizes multifunctional, efficient, and safe hole-processing technology. It is ideal for processing a wide range of metal parts, solidifying its status as an essential piece of equipment in modern machining workshops.
Product Parameters
Rocker Arm Drill Product Performance
The new series of radial drilling machines boasts multifunctionality and exceptional performance, ensuring safety, reliability, and ease of maintenance. With high precision, robust rigidity, and longevity, it employs hydraulic primary variable speed mechanisms to save auxiliary time. Featuring a light manipulation handle, its spindle box, rocker arm, and columns use hydraulically driven diamond block clamping for reliable operation. Quenched guide rails and columns enhance stability and longevity, while comprehensive safety features and external column protection ensure secure operation.
Classified by machine tool clamping structure, radial drills are either hydraulic or mechanical. Hydraulic radial drills offer ease and versatility, perfect for single or mass production involving porous large parts, and are a staple in general machining workshops.

Product Name	Radial drill	Radial drill	Radial drill
Product model	3040*13/16	3032	Z3050*13/16
Maximum diameter of hole	casting40/Steel part35mm	casting32/Steel part27mm	casting50/Steel part45mm
Distance from spindle end face to table	430-1210mm	360-1050mm	360-1300mm
Distance from spindle center to column busbar	300-1100mm	260-1050mm	260-1050mm
Spindle travel	220mm	120mm	220mm
Main shaft hole cone	4Mohs	4Mohs	4Mohs
Spindle speed range	34.78.145..75130.560.260.430.920.380.760.1280rpm		34.78.145..75130.560.260.430.920.380.760.1280rpm
Spindle speed class speed	12	6	12
Spindle feed range	0.10-0.25rpm	0.10-0.25rpm	0.10-0.25rpm
Spindle feed series	3	3	3
Swing arm rotation Angle	Plus or minus 180 degrees	Plus or minus 180 degrees	Plus or minus 180 degrees
motor power	2.2kw	1.5kw	4kw
Machine weight	1400kg	9600kg	2400kg
Overall dimension	1500*705*2020mm	1350*705*1880mm	1950*810*2450mm

Detailed Photos
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.
