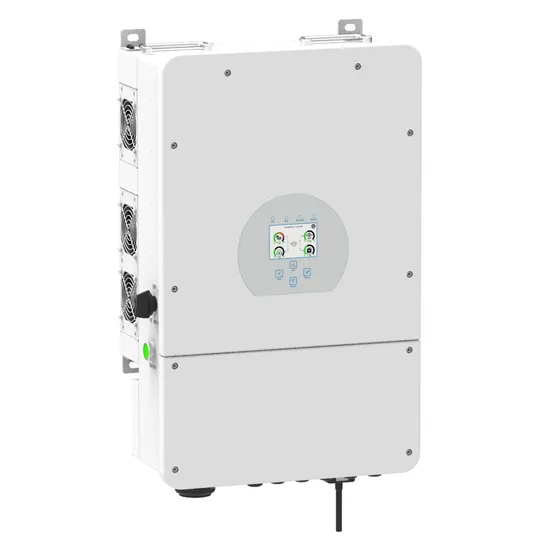

Deye Sun-8K-Sg03lp1-EU 8kw Single Phase 220V Deye Hybrid on Grid off Grid Solar Inverter
Basic Info.
Model NO.
deye
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Application
Solar Power System
Certificate
ISO 9001/CE/IEC/TUV
Max PV Power
3kw 5kw
MPPT Efficiency
99.5%
Frequency
50/60 Hz
Display
LCD Screen
Output Frequency
70~500V
Protection Level
IP 65
Self-Consumption
<1W
Topology
Transformerless
Cooling Concepet
Smart Cooling
Noise Emission
50dB
Transport Package
Carton
Specification
3kw 5kw 10kw
Trademark
Deye
Origin
China
Production Capacity
50000piecs/Year
Packaging & Delivery
Package Size
1998.00cm * 1160.00cm * 768.00cm
Package Gross Weight
29.000kg
Product Description
| Model | 3.6KW | 5KW |
| Battery Input Data | ||
| Battery Type | Lead-acid or Lithium-ion | |
| Battery Voltage Range (V) | 40~60V | |
| Max. Charging Current (A) | 90A | 120A |
| Max. Discharging Current (A) | 90A | 120A |
| Charging Curve | 3 Stages / Equalization | |
| External Temperature Sensor | Optional | |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |
| PV String Input Data | ||
| Max. DC Input Power (W) | 4680W | 6500W |
| PV Input Voltage (V) | 370V (100V~500V) | |
| MPPT Range (V) | 125~425V | |
| Full Load DC Voltage Range | 240~425V | |
| Start-up Voltage (V) | 150V | |
| PV Input Current (A) | 11A+11A | |
| No.of MPPT Trackers | 2 | |
| No.of Strings Per MPPT Tracker | 1+1 | |
| AC Output Data | ||
| Rated AC Output and UPS Power (W) | 3600W | 5000W |
| Max. AC Output Power (W) | 3960W | 5500W |
| Peak Power (off grid) | 2 times of rated power, 10 S | |
| AC Output Rated Current (A) | 15.7A | 21.7A |
| Max. AC Current (A) | 18A | 25A |
| Max. Continuous AC Passthrough (A) | 35A | |
| Power Factor | 0.8 leading to 0.8 lagging | |
| Output Frequency and Voltage | 50/60Hz; 220/230 / 240Vac (single phase) | |
| Grid Type | Single Phase | |
| Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |
| Efficiency | ||
| Max. Efficiency | 97.60% | |
| Euro Efficiency | 96.50% | |
| MPPT Efficiency | 99.90% | |
| Protection | ||
| PV Input Lightning Protection | Integrated | |
| Anti-islanding Protection | Integrated | |
| PV String Input Reverse Polarity Protection | Integrated | |
| Insulation Resistor Detection | Integrated | |
| Residual Current Monitoring Unit | Integrated | |
| Output Over Current Protection | Integrated | |
| Output Shorted Protection | Integrated | |
| Output Over Voltage Protection | Integrated | |
| Surge protection | DC Type II / AC Type II | |
| Certifications and Standards | ||
| Grid Regulation | VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699: 2011, XP C15-712-3, CEI 0-21 | |
| Safety Regulation | IEC62109-1, IEC62109-2 | |
| EMC | EN61000-6-1, EN61000-6-3 | |
| General Data | ||
| Operating Temperature Range (ºC) | -25~60ºC, >45ºC Derating | |
| Cooling | Smart cooling | |
| Noise (dB) | <30 dB | |
| Communication with BMS | RS485; CAN | |
| Weight (kg) | 20.5 | |
| Size (mm) | 330W×580H×232D | |
| Protection Degree | IP65 | |
| Installation Style | Wall-mounted | |
| Warranty | 5 years | |
