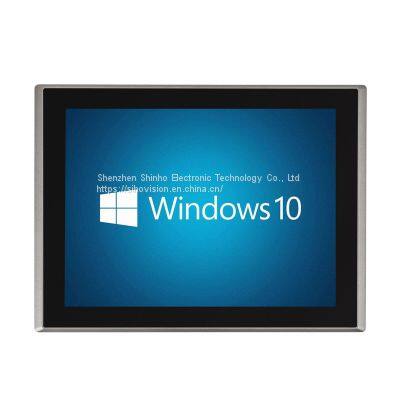

2022 new arrivals industrial computer all-in-one 10th generation Core I7 10610U DDR4 8GB RAM 128GB SSD
Product Details
Product Details
Product Description
Product Description2022 new arrivals industrial computer all-in-one 10th generation Core I7 10610U DDR4 8GB RAM 128GB SSD
FEATURES
CORDLESS MOTHERBOARD design, high-end industrial panel PC.
Fully enclosed design, the whole PC is dustproof.
Aluminum alloy shell, seamless design, front panel IP65 waterproof.
Integrated heat sink on the back side, excellent heat dissipation.
With RUBBER WATERPROOF RING on the back side.
Adopt multi-points PCAP touch panel, high sensitive and fast-response.
Covered with 2mm tempered glass for vandalproof.
9V TO 36V wide voltage, 4 Pin aviation plugs sockets, Shock - proof.
Equipped with Intel 10th Celeron J4125/J6412 processor, optional Intel 8/10/11th Core i5/i7, support WINDOWS 11.
SPECIFICATION
| Model:SC800M | |
| PC | |
| CPU | Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless |
| CPU Optional | Intel® Celeron J6412, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.6 GHz, 1.5MB Cache, Fanless |
| CPU Optional | Intel® Core i5-8260U 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 3.9 GHz, 6MB Cache, Fanless |
| CPU Optional | Intel® Core i5-8365U 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 4.1 GHz, 6MB Cache, Fanless |
| CPU Optional | Intel® Core i7-8565U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.6 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-8569U 4 Cores, 8 Threads, Base 2.8 GHz, Turbo 4.7 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i5-10210U 4 Cores, 8 Threads, Base 1.3 GHz, Turbo 4.2 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i5-10310U 4 Cores, 8 Threads, Base 1.7 GHz, Turbo 4.4 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-10510U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-10610U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless |
| Memory | J4125/J6412: DDR4 SODIMM x1(Max 8G RAM) Core i5/i7: DDR4 SODIMM x2(Max 64G RAM) |
| Storage | 1 x M.2 2242/2260/2280 SATA 1 x SATA(2.5'' SATA ) 1 x M.2 2280 NVME |
| Hard Drive Capacity | 64G SSD (128GB, 256GB, 512GB, 1TB SSD, 500GB, 1TB, 2TB HDD Optional) |
| Network | 2x 2.5 GbE RJ45 Intel i225V (4 x 2.5GbE RJ45 Intel i225V Optional) |
| Wireless Network | WIFI/Bluetooth/3G/4G/5G module Optional |
| I/O Interface | 4 x USB2.0 , 2 x USB3.0 (J4125/J6412) 2 x USB2.0 , 4 x USB3.0 (8th/10th/11th generation intel Core i5/i7) |
| 2x DB-9 COM1& COM2, RS232/422/485 | |
| 1x HDMI/Audio Line-out/ Power Button | |
| 1x AT/ATX switch | |
| 1 x Extended IO: 4x RS232(4x3 wire COM3&COM4&COM5&COM6), GPIOx10, 1x Remote Switch | |
| 2x 8Ω 1W Amplifier out optional | |
| Expansion slot | M.2 3042/3052 3G/4G/5G Module, onboard SIM Card Slot |
| M.2 2230 WiFi Bluetooth | |
| Storage | 1 x M.2 2242/2260/2280 SATA 1 x SATA(2.5" SATA ) 1 x M.2 2280 NVME |
| Watchdog timer | 1 to 65535 seconds programmable setting |
| Operation System | Support Windows® 10/11, WES 10, LINUX, etc. |
| Support | TPM 2.0 |
| Support | PXE Boot |
| Support | UUID |
| LCD panel | |
| Panel size | 10.1", 12.1", 15.6", 15", 17", 19",21.5" |
| Resolution | 1024*768, 1280*800, 1280*1024, 1920*1080 |
| Aspect ratio | 4:3, 16:9, 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 500 nits |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 Wire Resistive Touch Optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | 9-36V DC Wide Voltage with 4PIN Aviation Connector |
| Power consumption | ≤24W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Grey |
| VESA mounting | 75x75/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, Storage: -30 to 70°C |
| Relative humidity | 10%~90% @ 30° C, Non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Accessories | Power adapter, Power cord, Embedded screws, Phoenix terminal |
| Accessories optional | WIFI module, 3G/4G/5G module, VESA bracket |
| Other | |
| Mounting (options) | Embedded mounting screws |
| Wall mounting brackets (optional) | |
| Desk stand holder (optional) | |
| Warranty | 2 years warranty |
| Certificate | CE, FCC, RoHS |
PRODUCT SERIES:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
