Fully Automatic Double Channel Toilet Tissue Paper Log Saw Cutting Machine

Product Description

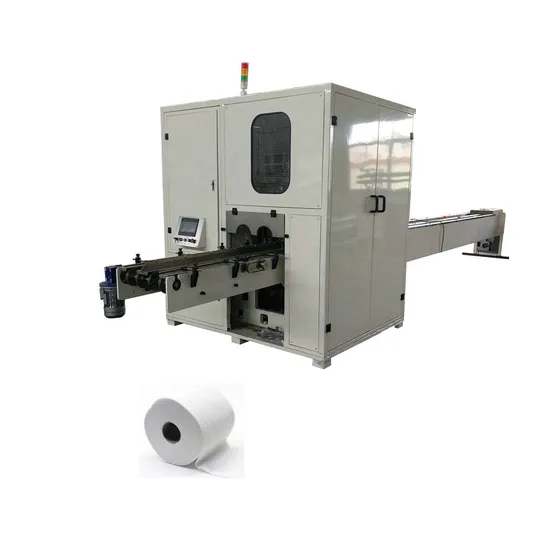

XY-AI-280 Fully Automatic Double Channel Toilet Tissue Paper Log Saw Cutting Machine
XY-AI-280 Double Channel Log Saw Machine is used for cutting the toilet paper roll and kitchen towel paper roll, it's with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.
Function and Features:
1. Automatic blade grinding system, quickly setting parameter on PLC..
2. Sharpen wheel can grinding according to the wear degree.
3. Two Logs are feeding automatically, cutting then pushing.
4. Shortcuts can be kicked off from the quality products.
5. Equipped with two sets of clamping channels, easy to change.
Main Technical Parameters:

Model	XY-AI-280 Log Saw Cutting Machine(Double Channel)
Jumbo Roll Width	1750mm (Other size can be specified)
Jumbo Roll Diameter	Φ95~φ105mm…125-135mm (Other size can be specified) max. 140mm
Design Speed	150cuts/min
Stable Speed	100cuts/min
Grinding System	Pneumatic Sharpen, grinding time can be set
Driving System	Delta Servo Motor
Power	11KW
Overall Dimension	6500*2500*2000mm(Other size depends on model and configuration)
Blade Diameter	φ610*4.7mm
Voltage	380V 50HZ
Weight	About 4.5T

Detail pictures:
