Sand Shooter Dl-800-B Casting Automatic Double Head Dl-400/600/800-B Core Shooting Machine Manufacture

Product Description

Automatic Core Shooting Machine Introduction: 1. Automatic Double-Head heated core box shooter is a heated core box core-making equipment with a four-column operable structure which can be operated manually or automatically
2. It is applicable to sand core with a qualitative properties less than 15kg in one side.
3. Its working principle is to shoot the dry resin bonded sand into a heated core-box. After being rapidly hardened to a certain thickness, high quality sand core with a smooth surface and precise dimension is obtained.
4. The core shooting machine working procedure: Core box clamps----sand shooting head clamps----sand shooting----shooting.
Main Specificaiton And Technical Parameters:

Content	DLZS3828S	DLZS5050S	LZS8080S
Max Weight For Core Box	3.2KG*2	5KG*2	15KG*2
Max Size of Mold	380 x 280 x200mm	500 x 500 x 250mm	800 x 800 x 500mm
Ejector Stroke From Left To Right	≤125mm	≤250mm	≤250mm
Max Stroke Of Vertical Mold Closing	≤300mm	≤450mm	≤700mm
Heating Power	8KW	15KW	37KW
Net Weight	600KG	860KG	3000KG
Machine Dimensions	1420 x 680 x1700mm	1850 x 880 x 2235mm	2485 x 1285 x3100mm

The Machine Can be Customized By Client's Requirements!

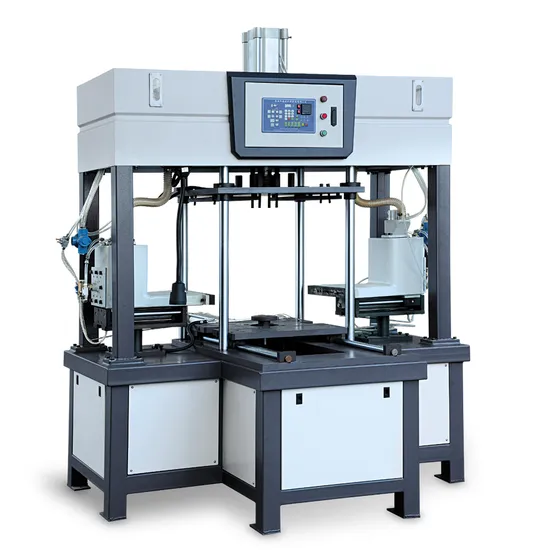

Our Automatic Double-Head Core Shooting Machine:
