G200 CNC Hobbing Machine, High Precision Gear Hobbing
| US$10,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
G200
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Maximum Workpiece Diameter for machine
200mm
Maximum Machining Modulus
4.5m
Number of Controlled Axes
6 Axis
Maximum Clamping Length of Workpiece
450-580mm
Maximum Tool Rotation Angle
90degree
Total Motor Power
18kw
Maximum Hob Installation Diameter*Length
Dia100X120mm
Hob Shifting Stroke
100mm
Worktable End Face Diameter
200mm
Maximum Hob Speed (B Axis)
1500rpm
Maximum Worktable Speed (C Axis)
400rpm
Machine Weight
6500kg
Machine Dimensions (Length X Width X Hei
2200X1800X2500mm
Transport Package
Wood CTN
Specification
2200x1800x2500mm
Trademark
JYME
Origin
China
Product Description

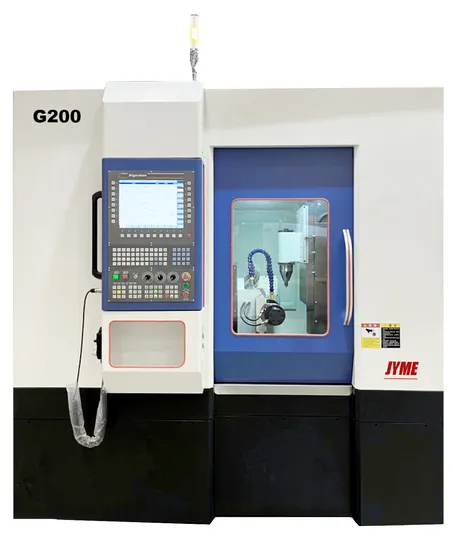

G200 Vertical CNC Gear Hobbing Machine
This machine can process cylindrical gears with a maximum module of 4 and a diameter of less than 200mm;
Electronic gearbox EGB function;
C-axis tensioning device;
BT tool bar;
Hydraulic automatic top tool;
Secondary precision hobbing;
Optional C-axis worktable direct drive motor;
Main standard configuration: Haidemeng system, Yaskawa servo motor, Taiwan HIWIN guide rail, PMI screw rod, NSK bearing
Parameters
| Main Specifications (please inquire/email us for more details ) | |
| Maximum workpiece diameter for machining | 200mm |
| Maximum machining modulus | 4.5m |
| Number of controlled axes | 6 axis |
| Maximum clamping length of workpiece | 450-580mm |
| Maximum tool rotation angle | ±45° |
| Total motor power | 18kw |
| Maximum hob installation diameter*length | φ100x120mm |
| Hob shifting stroke | 100mm |
| Worktable end face diameter | 200mm |
| Maximum hob speed (B axis) | 1500rpm |
| Maximum worktable speed (C axis) | 400rpm |
| Machine weight | 6500kg |
| Machine dimensions (length x width x height) | 2200x1800x2500mm |
Chizhou Jingyi Electromechanical is a professional machinery manufacturing service provider. The factory has a full range of shears, saws, lathes and other processing equipment. The product styles are complete. The products are made of high-quality materials and advanced processing technology. The quality is guaranteed. All products can provide good training and technical services. Welcome new and old customers to inquire.
