Type

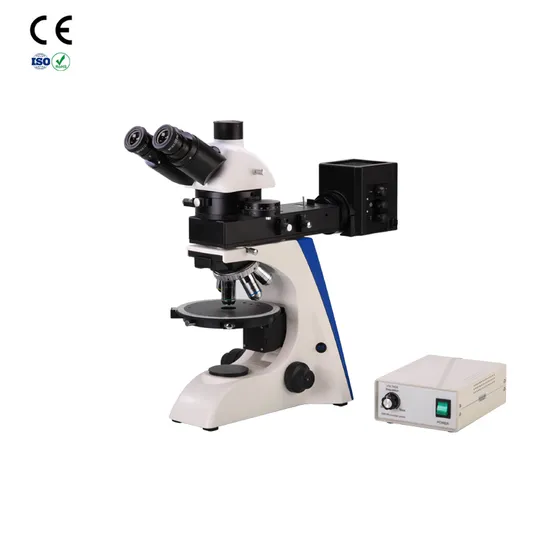

Polzrizing Microscope
Number of Cylinder
≥Three
Stereoscopic Effect
Without Stereoscopic Effect
Kind of Light Source
Ordinary Light
Shape
Cylindrical Shaped Lens
Principle of Optics
Non-Stress Lwd Infinity Optical System
Nosepiece
Quintuple(Center Adjustable)
Swing out Condenser
N.a.0.9/0.13,Polarizing Unit
Pol Media
Analyzer Rotatable 360°,Module Type Locked
Polmedia
Betrand Lens,Built in.Center Adjustable
Slip
λslip,λ/4 Slip,Quartz Wedge(I-IV)
Revolving Round Stage
Rotatable 360° Division1°vernier 6&Deg
Illumaiton
Reflecting 12V/50W
Objective
Non-Stress Lpl Plan 5X/10X/20X/50X
Power
Input Wide Voltage 100V-240V, Output 5V1a
Specification
565x310x410(mm)
Production Capacity
50000PCS/Year
