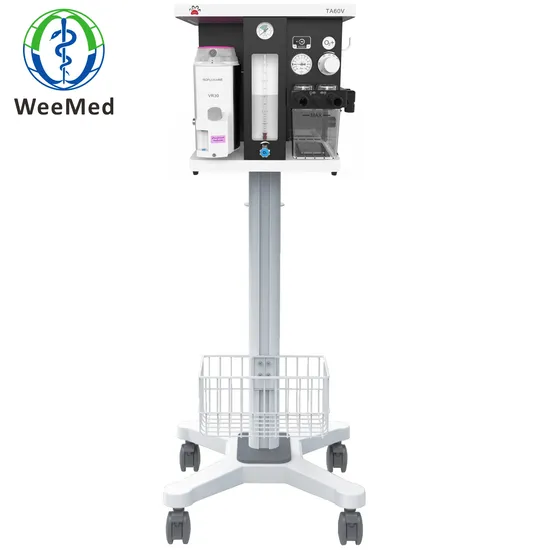

Ta-60V Vet Anesthesia Equipment Portable Medical Animal Veterinary Anesthesia Machine with Trolley Cart with Bain Module

Ta-60V Vet Anesthesia Equipment Portable Medical Animal Veterinary Anesthesia Machine with Trolley Cart with Bain Module

US$1,000.00-1,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
TA-60V
Transport Package
Wooden Case
Specification
1220x700x1830cm
Origin
China
Production Capacity
50000PCS/Year

Product Description

Products Pictures
Product Description TA60V is a high-end anesthesia machine used in animal hospitals. The design of the product adheres to the concept of anesthesiologists-oriented, completely abandoning the design idea of traditional animal anesthesia machines that only considers product costs.
Through the innovation of product structure and circuit module design, all the gauges and main operating elements of TA60V are arranged on the front of the product to facilitate the operation and observation, and also realize a variety of installations and applications such as wall-mounted, desktop and stand for one model.

Ventilation modes: IPPV; A/C; SIMV;
Ventilator parameter ranges
Flow meter O2(0-5L/min)
Rapid oxygen supply 35L/min-75L/min
Tidal volume(Vt) 0, 20 mL ~ 1500 mL
Frequence(Freq) 1bpm ~ 100 bpm
I/E 2:1~1:6
Pressure triggering sensitivity(PTr) -20 cmH2O ~ 0 cmH2O(Based on PEEP)
Flow trigger sensitivity (FTr) 0.5 L/min ~ 30 L/min
SIGH 0(off) 1/100 ~ 5/100
Apnea Ventilation OFF,5 s ~ 60 s
Pressure Limit 20 cmH2O ~ 100 cmH2O
Monitored Parameters
Frequence(Freq) 0 /min ~ 100 /min
Tidal volume(Vt) 0 mL ~ 2000 mL
MV 0 L/min ~ 100 L/min

Graphical display:
P-T(pressure - time)
F-T(flow - time)

Size
1. Wooden case packing size:L 810*W 760*H 520mm , GW:53KG ; NW:30KG
2. Wooden case packing size:L 650*W 690*H 520mm , GW:40KG ; NW:20KG
Alarm and protection
The AC power failure alarm Power failure or no connection
Internal battery backup low voltage alarm <11.3±0.3V
No tidal volume ≤5Ml within 6s
High oxygen concentration alarm
Low oxygen concentration alarm		 19%-100%
18%-99%
High Airway pressure alarm
Low Airway pressure alarm
High Minute Volume alarm
Low Minute Volume alarm
Continuous Pressure alarm		 20cmH2O-100cmH2O
0cmH2O-20cmH2O
Adult(5L/min-20L/min) Paed(1L/min-15L/min
0-10L/min)
(PEEP+1.5kPa) over 16s
Suffocation warning 5s-60s no spontaneous ventilation
The maximum limited pressure <12.5 kPa
Fan error
Oxygen deficit
 Show on screen
Show on screen
Working conditions
Gas source O2
Pressure 280kPa-600kPa
Voltage 100-240V
Power frequency 50/60Hz
Input power 60VA
Vaporizer

Package
Application
Certificates
Factory
Exhibition
Customer Feedback
