2022 The Modernest Poultry Farm Equipment and Battery Chicken Cage

Product Description

A Frame Layer Cage System It is designed for open and close house and suitable to use in all over the world,especially the open house ,it is suitable to be used in tropical zone such as Africa,South East Asia and South Asia Countries.The cage mesh is hot galvanized.
CAGE FRAME SPECIFICATION

Item NO	Cell Length	Cell Depth	Cell Height	Dimension /Unit (Mm)	Cells/Unit Per Set	Tier/Set	Birds Per Cell/Unit/Set
A390	390	350	380	1950*350*380	5/6	3	3/15/90
A4120	390	350	380	1950*350*380	5/8	4	3/5/120
A3120	430	420	410	2150*420*410	5/6	3	4/20/120
A3120	430	420	410	2150*420*410	5/8	4	4/20/160

Both the cage meshes and cage leg support frames are made by Q235A steel which ensure the cage meshes give enough elasticity to the layer birds and make the chicken feel good for laying eggs.

Feed troughs: made of PVC ones(100% new material) or the 1.0--1.20mm thick hot galvanized steel sheets with round edge for convenient cleaning, solid and durable design.



This system is made up by the square pipes(thickness 2.5mm) or round pipes(thickness 2.0mm) with 360 degree flowing nipple drinkers, water drip cups and water pressure regulators, terminals, splits, water filters makes sure the water is clean and no harmful to the layers.

The medicater (from France) to farmers, the best quality founded worldwide, because we are one of the authorized distributors of DOSATRON in China. It ensures the layer birds health during all period.

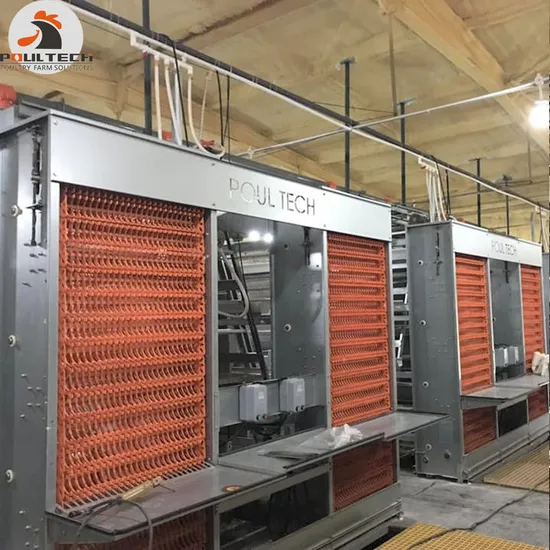

It is made up by egg collection machines, egg collection belts (made in Italy) and egg belt hooks. The machines can be from 2 tier to 8 tier.

A frame cages also can be equipped with egg conveyor system which can deliver all eggs from different houses to egg storage room.
Egg production of caged layer was reported to be more than those kept in deep litter system.





If you have any questions, just tell us, we will make a professional design and layout drawing for you for free.
