Sqmg Self Feeding Mobile Cement Mixing 2.6m Self Loading Mixer Truck

Product Description

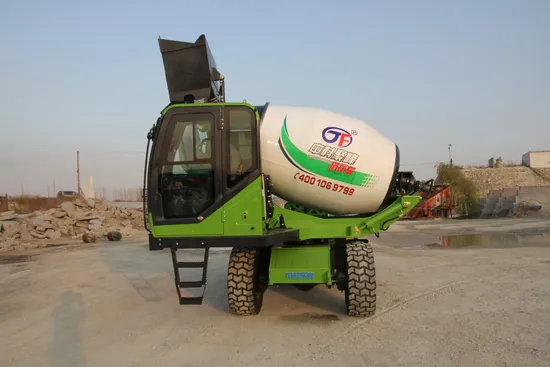

Product DescriptionSQMG JF Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader.
0.8m³ Longer transportation distance, no longer only supporting short distance transportation,
better improving work efficiency.

Model	JF-0.8	Geometric capacity of mixing drum	1450L
Overall dimensions (length * width * height)	3389 * 2876 * 2295	Concrete production	0.8 cubic meters per batch
Curb weight (kg)	3620	Oil	12L
Drive form	Torque converter drive	Tank	56L
Maximum speed (km/h)	30	Maximum climbing slope	30

2 m³ We support customized mixing trucks with various quantities, and they will provide youwith absolute advantages in terms of quality and price, making your application more extensive.

Model	JF-2.0	Drive type	Torque converter
Overall dimensions (length * width * height)	6950*2720*3850	Working weight	6300 kg
Geometric drum volume	3500L 3.5m³	Fuel tank:	75l
Drum speed	18-21 rpm	Emission standard	Euro 2
Maximum speed (km/h)	35	Maximum climbing slope	40

3.5m³ lt adopts a self-loading design, which can realize automatic loading, weighing, mixing, and discharging. It can rotate the material for unloading. The tank and cab can realize synchronous steering, making on-site construction very convenient.

Model	JF-3.5	Drum&Cab 270°Slewing	270 °
Mixed volume	3.5m3	Maximum driving speed	30 km/h
Geometric volume	4740L	Gradient	40% full load
Concrete output	3.5 m3/batch, 14 m3/hour	Working weight	8300 kg
Drum speed	18-21 rpm	Fuel tank:	120L

6.5m³ SQMG JF concrete mixer truck provides you with 24-hour professional after-sales service. No matter what problems you encounter, please contact us to solve them for you.

Model	JF-6.5	Drum rotation angle	290 °
Mixed volume	6.5m3	Overall dimensions (length × wide × high)	8450 * 3050 * 4830
Geometric volume	9000L	Maximum driving speed	40.0 km/h
Concrete output	6.5 m3/batch, 26 m3/hour	Gradient	40% full load
Drum speed	16.5 rpm	Fuel tank:	370l

Detailed PhotosLOADIHG BUCKET --Easy loading of materials into the mixing drum --Bucket vibrator for better discharge --Use hydraulic cylinder to control opening and closing of gateWATER SYSTEM --Quantitative self-priming pump,plus quantitative controller,realizes automatic quantitative water intake. --Double water supply system,can add water from external water source,or water in the water tank.
ROP&FORPS TYPE CAB--Sound insulation,high safety --Tilt front window --Height adjustable anatomical seat --Anatomic seat with flexible suspension --Air conditioner is upon requestEXQUISITE CRAFTSMANSHIP DETAILS --Quality can withstand amplification
--Fully sealing cyclotron support,100% avoid dust;with at least 6 grers to contact each other.THE CAB CAN BE TURNED SYNCHRONOUSLY OR CAN BE ROTATED
It helps drivers to observe the position of the discharge port more accurately and control the discharge amount, improving the accuracy and controllability of discharge.Reducing driving fatigue and reducing the bearing strength of the bottom turntable is beneficial for the long-term operation of the turntable.
