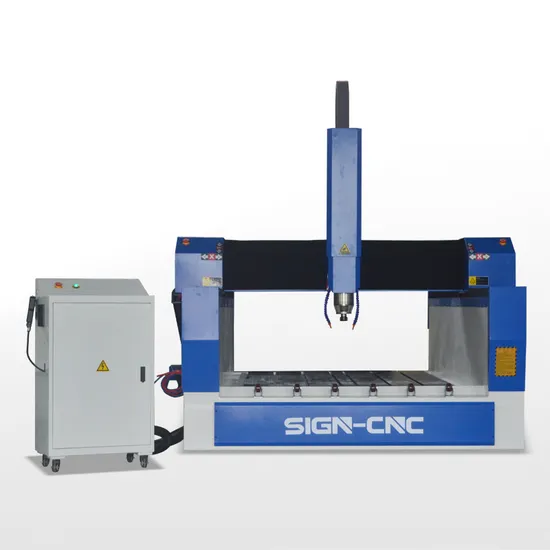

Stone CNC Router Sign-1318 Model 1300*1800mm Size 4 Axis Stone Carving Machine
Basic Info.
Type
CNC Cutting Machine
Usage
Marble
Application
Machinery & Hardware, Art & Craft, Stone Industry
Source Voltage
380V
Automation
Manual
Cutting Ability
High Speed
Control
CNC
Certification
CE
Model
Sign-1318
X,Y Working Area
1300*1800mm
Z Axis Height
300mm
Table Surface
T-Slot Table
Spindle
5.5kw Water Cooling
Spindle Speed
0-24000rpm
Control System
DSP A11
Inverter
Fulling 5.5kw
Guide Rail
25mm Square Guide Rail
Motor
Stepper Motor
Color
blue with White
Mapping Software
Artcam
Transport Package
Wooden Case
Trademark
SIGN CNC
Origin
China
Product Description
Product DescriptionStone cnc router SIGN-1318 model 1300*1800mm size 4 axis stone carving machine
Detailed Photos
Product Parameters
| Model | SIGN -1318 |
| X, Y Working size | 1300*1800mm |
| Z feed Height | 300mm |
| Table Surface | T-slot table |
| X, Y Structure | Rack and Pinion Driver, 25mm Linear Square Guide Rail |
| Z Structure | Linear Square Guide Rail and Ball Screw |
| Max. Power Consumption | (Without spindle) 2.0Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 5.5KW water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Stepper motors |
| Working Voltage: | AC380V/60Hz |
| Command Language | G code |
| Control System | DSP A11 |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| X,Y Resolution | <0.01mm |
| Software | Artcam |
| Running Temperature | 0 degree - 45 degree |
| Relative Humidity | 30% - 75% |
Samples
Packaging & Shipping
Company Profile
FAQ
Q1:What about your after-sales service
A1: Two years warranty for machine and 24 hours technical support by call, email, skype, whatsapp, wechat and so on. If you have any question about machine and use, can contact with us, we will give you a solution or send to you video for how to do.
