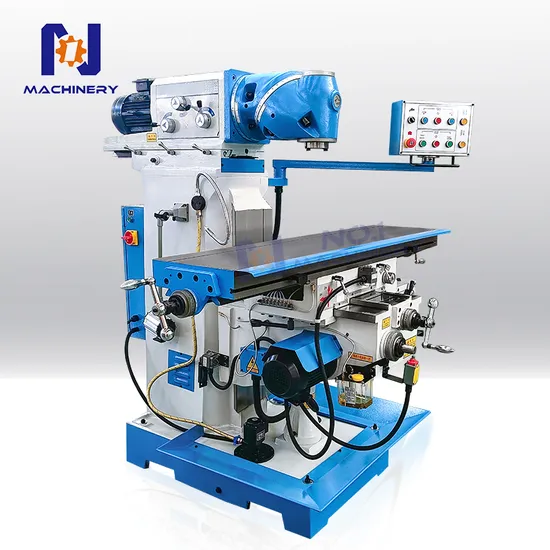

X6232 Universal Swivel Head Milling Machine Vertical Turrent Milling Machine Price

Product Description

Product Description

The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong
steel, gear up for gear grinding ,by high frequency quenching and low noise durable
Product Parameters

PARAMETER ITEM	UNIT	X6228	X6232
Size of worktable	mm	1200x280	1500x320
Table travel	mm	650x280x350	1000x320x400
T-shaped groove for table	-	3	3
Spindle Taper	-	7:24 ISO40	7:24 ISO40
Spindle speed range	rpm	35-1600	35-1600
Distance from spindle face to table	mm	110-490	120-520
Distance from center of horizontal axis to table	mm	0-500	1000x360x360
Table feed range	mm/min	18-308 (8steps)	18-308 (8steps)
Rotation angle of milling head	.	360°	360°
Main motor power	kw	2.2	2.2
Feed motor power	kw	0.75	0.75
Weight of machine tool	kg	1300	1700
External dimensions	mm	1500x1400x1730	1700x1560x1750

Detailed Photos
Packaging & Shipping
