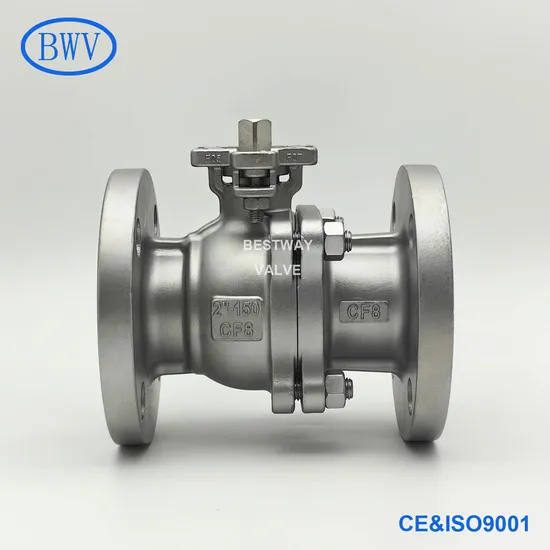

ANSI 150lb/JIS 10K/DIN Pn16 Flanged Ends Stainless Steel Floating Ball Valves

Product Description

ANSI 150lb/JIS 10K/DIN Pn16 Flanged Ends Stainless Steel Floating Ball Valves
A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.Ball valves with mounting pad can also be operated by actuator and gear box.
Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff and control applications, where they are often preferred to gates and globe valves, but they lack their fine control in throttling applications.
Descriptions:
1) Design standard: ASME B16.34
2) Flanged ends: ASME B16.5 CLASS 150-300,JIS 10K,DIN PN16-40
3) Face to Face: ASME B16.10,JIS B2220,DIN 3202 F4/F5
4) Testing: API 598,JIS B2003,EN 12266
5) Material:ASTM A351-CF8M,CF8,CF3M,SS316,SS304,SS316L,SCS13,SCS14,1.4308,1.4408,1.4409
ASTM A216-WCB
6) Size: 1/2" - 8",DN15-DN200
7) Working pressure: 150LB/300LB,10K,PN16
8) Seat Material: PTFE,RPTFE,PPL
9) Working temperature: -20 to 180°C (RPTFE) ,-20 to 300°C (PPL)
10) Working medium: Water, Oil, Gas, Acid, etc

Features:

1) Blow-out proof stem
2) Investment Casting Body
3) ISO 5211 Mounting Pad for Easy Automation
4) Full Bore

No.	Parts	Material
1	Body	CF8M/316	CF8/304	WCB
2	Cap	CF8M/316	CF8/304	WCB
3	Ball	316	304
4	Gland	CF8M/316	CF8/304	WCB
5	Stem	316	304
6	Bolt	304
7	Nut	304
8	Spring Washer	304
9	Handle	SS/Casting steel/Aluminium Alloy
10	Seat	RPTFE/PTFE
11	Stem Packing	PTFE
12	Gasket	PTFE
13	Thrust Washer	PTFE
