Hotman Cg45 Compound Grinder
| US$96,150.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CG45
Type
Tool Grinding Machine
Processing Object
Optional
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Compound Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Grinding Max. Od
φ400 mm
Grinding Wheel Size
φ405*32~60*φ127mm
Max. Od Grinding Length
200 mm
Spindle Speed
0~1000 Rpm
Transport Package
Wooden Case
Specification
7000kg
Trademark
Hotman
Origin
China
Production Capacity
300set/Year
Product Description
Hotman CG45 CNC Compound GrinderProduct Parameters
| No. | Item | Configuration |
| Processing capacity | ||
| 1 | Grinding max. OD | φ400mm |
| 2 | Grinding wheel size | φ405*32~60*φ127mm |
| 3 | Max. OD grinding length | 200mm |
| 4 | ID grinding range | φ6~200mm |
| 5 | Max. grinding depth | 200mm |
| 6 | Max. damping length | 260mm |
| 7 | Height from grinding wheel spindle to ground | 1150mm |
| Workhead | ||
| 8 | Spindle speed | 0~1000rpm |
| Drive motor | ||
| 9 | Y-axis cylindrical grinding wheel motor | 6.5KW |
| 10 | X, Y, Z axis slide feed (servo motor) | 2.5KW |
| 11 | Workhead drive motor (servo motor) | 1.5KW |
| 12 | Z-axis internal grinding wheel electric spindle | 18000~60000rpm |
| 13 | Hydraulic pump motor | 100W |
| 14 | Coolant pump motor | 0.37KW |
| Other | ||
| 15 | Hydraulic tank capacity | 2L |
| 16 | Coolant tank capacity | 200L |
| 17 | Machine size (L×W×H) | 2300×2200×2000mm |
| 18 | G.W (appx.) | 7000kg |
| No. | Special Accessories |
| 1 | Hydraulic chuck 6" /8" (medium solid, hollow) |
| 2 | Roller type workhead |
| 3 | Diaphragm chuck |
Product Description

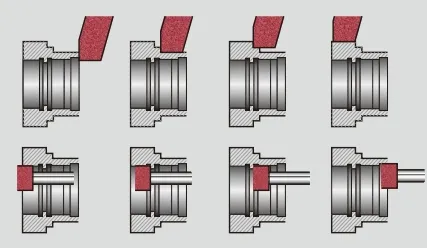

Hotman CG45 CNC Grinding Machine can realize one-time clamping and complete the integrated grinding of inner circle, inner cone, outer circle, outer cone and end face.
Provide high-precision and complex grinding solutions suitable for processing small and medium-sized workpieces. An automatic feeding and receiving system can be installed to meet the needs of industrial mass production.
The external/internal grinding modules can be flexibly combined as needed to adapt to different grinding form and process.
The control system is friendly and easy to learn, allowing for rapid workpiece grinding. Grinding wheel dressing is programmable, online measuring device can be installed.
Machine Structure
Grinding Wheel Head Combination:
1. Incline cylindrical grinding wheel+ Internal grinding wheel
2. Double cylindrical grinding wheel
3. Double bore grinding wheel
4. Straight cylindrical grinding wheel+ Internal hole grinding wheel
Special Accessories:
1. Online measurement device
2. Inner circle double spindle
3.Hydraulic three-jaw chuck (special configuration)
4. Spindle rotary table manual angle adjustment device
5. Grinding wheels and adapters
