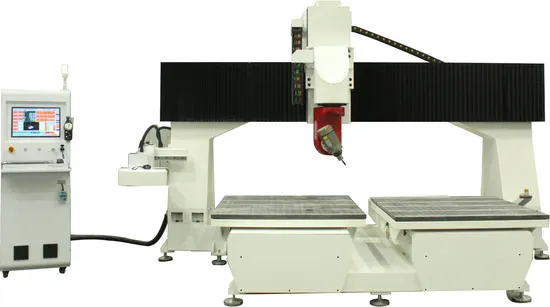

5 Axis CNC Router Machine for 3D Wood Cutting Engraving

Product Description

Product Description
This 5 axis CNC router is a continuous-use, feature-rich, heavy-duty machining center designed to process a wide variety of applications, from light materials such as wood and foam to composites and ferrous and non-ferrous metals. This machining center has the option of sliding doors on the front , allowing for easy loading/unloading of large materials. The universal fixture table improves productivity by reducing downtime between part runs.
Detailed Photos

o	Item	Data
1	working size	XYZ	1200x1200x500mm
2		A	+- 110
3		C	+-360
4	Speed	Maximum cutting speed X/Y/Z	10/10/10m/min
5		Maximum cutting speed A/C	120/120 °/s
6		Fast movement speedX/Y/Z	30/30/15m/min
7		maximum acceleration X/Y/Z	2.5/2.5/2.5 m/s2
8		maximum acceleration A/C	60/60 °/s2
9	controller	syntec	SYNTEC610
10	spindle	9kw	HQD
11	Servo motor	syntec
12	tools	8 pcs carousel tool changers

Spare parts
Spindle 9kw ISO HQD spindle ,The spindle is equipped with a separate hydraulic pump station to ensure safe and reliable spindle loosening and tool clamping movements. The Z-axis hydraulic balance system is equipped with a large-capacity accumulator to improve the stability of the system.

5 axis head
This head is an L-shaped design with compact structure and smooth and high-speed rotation. It is suitable for drilling, milling and cutting of light under medium loads.

Control system
Equipped with high-performance main board and 4 axis RTCP-Support five axis simultaneously control-Support various types of five-axis compensation-Rotation tool center point feature (RTCP) for high precision processing on surface

PMI /Hiwin rails The HIWIN linear guide ways are designed with load capacity and rigidity higher than other similar products . It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning absorb installation-error. Thus, the linear guide ways can achieve a long life with high speed, high accuracy and smooth linear motion.
Servo motor
Syntec multi-axis servo drive can easily meet the multi-axis drive requirements of the machine tool industry, and achieve multi-axis simultaneous control with highly integrated axis control functions.
Application
What do you want to use it for? Take a look at its application range.
1. Mold processing Five-axis engraving machine can be used for targeted mold processing, suitable for the processing and
production of various large molds, small precision molds, sculpture crafts, etc., and can also process electronic parts, bearings,auto parts, etc.
2. Advertising industry
Five-axis engraving machine can be used in the advertising industry, especially in the production of two-dimensional and three-dimensional letters and signs, such as advertising light boxes, signboards, architectural decoration, exhibition signs,shopping mall maintenance, etc.
3. Handicraft processing
Five-axis engraving machine can be used for the processing and production of various handicrafts, such as engraving, cutting,
punching and other processes of various ornaments, crystals, glass, ceramics, metals and other materials, and can also produce solid sculpture crafts.
4. Other fields
Five-axis engraving machine can also be used in the fields of automobiles, aviation, satellites, ships, etc., such as the
processing and production of aircraft models, ship models, and vehicle chassis, and can also be used for the processing of medical
devices, etc.

Packaging & Shipping

Company Profile
Quick CNC was founded in 2006 ,We are one of the best CNC router suppliers in China. Our products are selling well widely all over the world and have good reputations. Our products can meet different requirements from different customers. With the advanced technology, our experienced engineers can also customize according to detailed needs.
Jinan Quick-Fulltek CNC Machinery Co.,Ltd.specializes in R&D and production of various cnc equipment,such as 3 axis cnc, ATC cnc,automatic load and unload cnc,4 axis,5 axis, PTP, panel furniture cnc. All series machines are with one-year warranty. Meanwhile, customized equipment are available according to different requirements.
Facing the chances and challenges of Global Economic integration as well as being offered with opportunities Knowledge Economy Era,we are determined to achieve our dreams step by step with the advantages of high technology. We aim to be a professional,branding and international suppliers for woodworking industrial solutions.

Our service
1)One year for the whole machine without consumable parts.
2)We will provide the consumable parts at an agency price..
3)24hours online service, free technical support by whatsapp/wechat/call/emails.
4)Machine has been adjusted before delivery,operation disk is included in the delivery,if there is any other questions,please kindly contact us.
5)We have manual instruction and CD (Guiding videos) for software installation ,operation and machines using maintenance.
6)Engineers are avaliable to service machinery overseas.
Special services
(1)If customer have a specific request ,we can according to the clients parameters to customized machine .such as working area,optional accessories ,OME services.
(2)We are Made in China Trade Assurance Supplier.Place orders online ,get full protection under MIC third party guarantees.
Our customers
FAQ
Q: Are you factory or trading company?
A: We are professional factory specialize in CNC equipment for over 13 years.
Q: What's your MOQ? What's your delivery term?
A: Our MOQ is 1 set machine, we usually require 20-30 days for manufacturing, 1 day for packaging.
The exact time will be depended on your order quantity and customized level.
Q: What's your payment term?
A: We normally accept T/T and L/C at sight, other fast payment way is also accepted if the amount is smalll, like
Western union, Mastercard and cash etc.
Q: Whats your warranty time ? What you can supply to us after we bought your machine?
A: We give customer 1 year quality warranty. In case any accident in customer's factory, we will give permanent technic support and spare parts supplying.
